Component Inspection

Component Inspection

Check FTPS
1. IG "OFF" and connect scantool to DLC (Data Link Connect
2. Monitor "FTPS" parameter on service data.

Specification : Approx. 15.5 - 18.5 ohms (20 °C (68 °F))

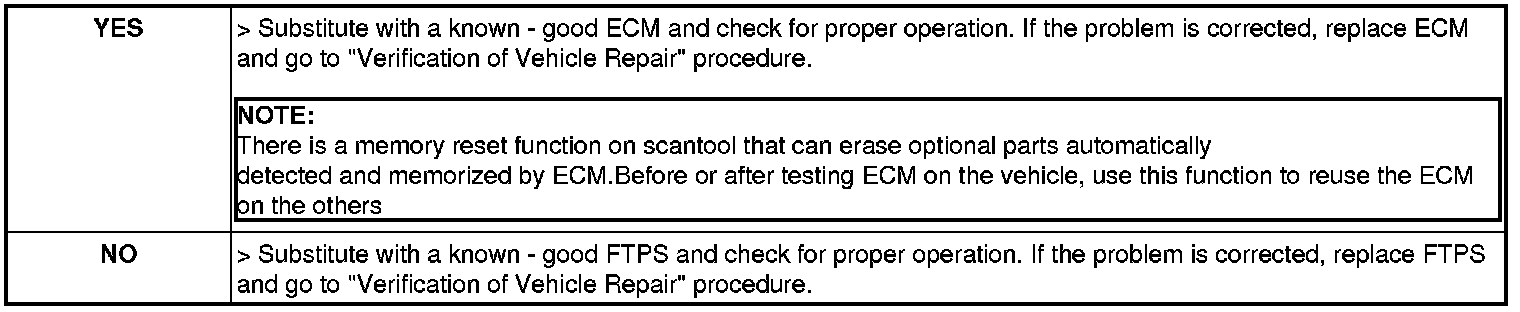

3. Is the "FTPS" parameter on the service data O.K ?
