Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. IG "ON"
3. Press a brake-pedal.
4. Check the service data related to "Brake Switch" on the scantool.

Specification : The brake switch's signal changes from OFF to ON.

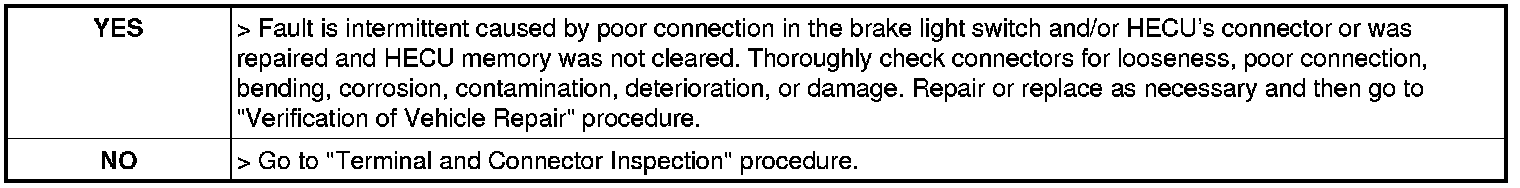

5. Does the service data change normally ?
