Component Inspection

Component Inspection

Check EPB Switch
1. IG "OFF"
2. Disconnect EPB Switch.
3. Measure resistance between EPB Switch terminals.

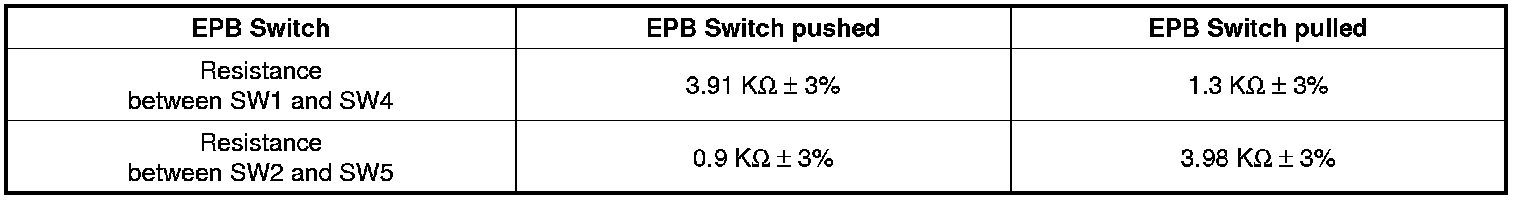

Specification :

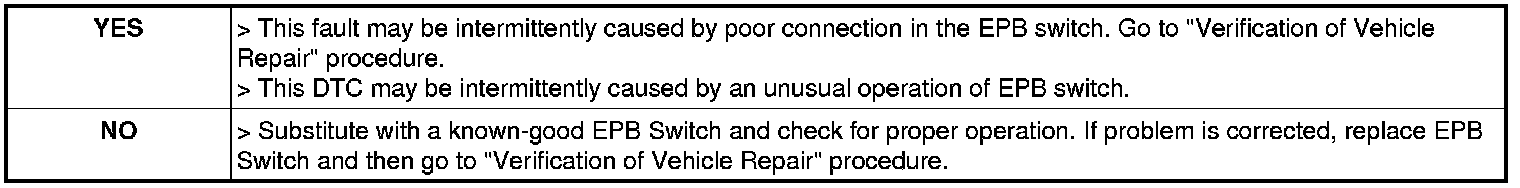

4. Is the measured value within specifications ?
