Component Inspection

Component Inspection

Execute the EPB Latching function
1. IG "OFF" and connect scantool to Data Link Connector (DLC).
2. IG "ON" and erase the DTC kept on the scantool.
3. Start engine.
4. Execute the EPB latching function by pressing the EPB button or by the scantool.
5. Using scantool, Check DTC present.

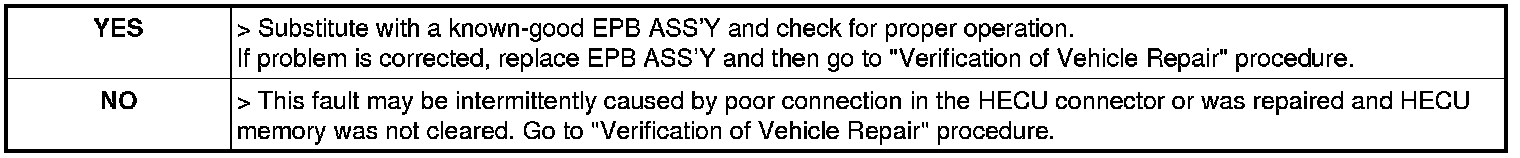

6. Is the same DTC shown ?
