Component Inspection

Component Inspection

1. IG "OFF"
2. IG "ON"
3. After connecting scantool, check DTC on the scantool.
4. Using scantool, Erase the DTCs.
5. Check if the longitudinal acceleration value is within ± 0.01G on the ground level by scantool.

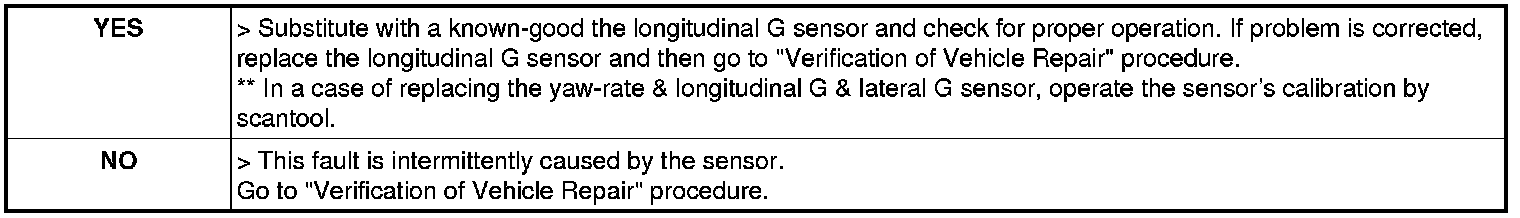

6. Is the value of the longitudinal acceleration value out of the normal range ?
