Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. IG ON or Engine ON
3. Monitor the "BATTERY VOLTAGE" parameter on the scantool.

Specification : Below 17.0V





Fig. 1) Normal data at the idle state

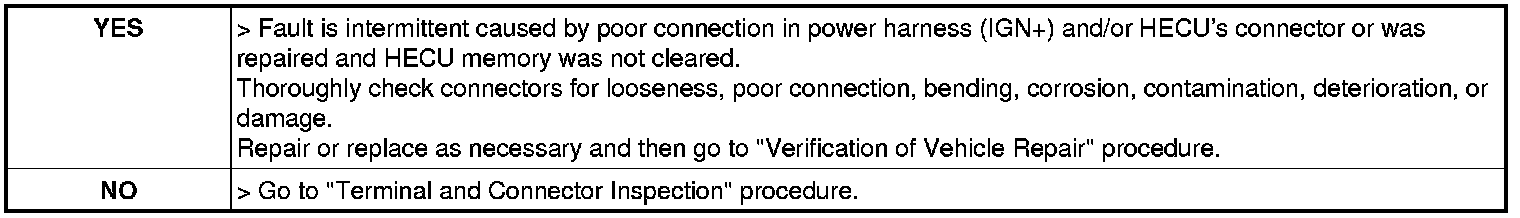

4. Is the battery voltage normal ?
