There are two (2) CONSOLE TEMPERATURE ACTUATOR which is controlled after calculating the three (3) signals from Console temperature control switch, Console Open/Close switch, Front Control panel set temperature.

DTC Description

Air conditioner Control Module sets DTC B2447 if Console temp actuator has not been moved to the mode, where air condition control module controls, within 40 seconds.

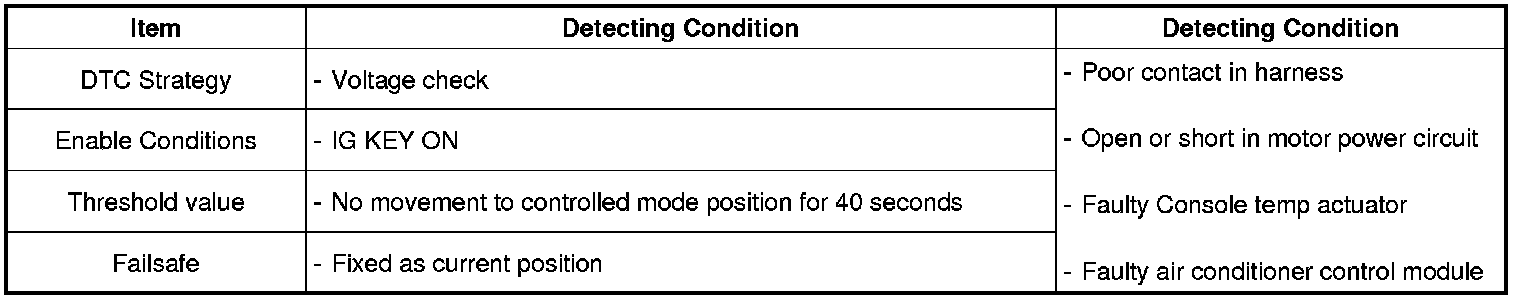

DTC Detecting Condition





Specification

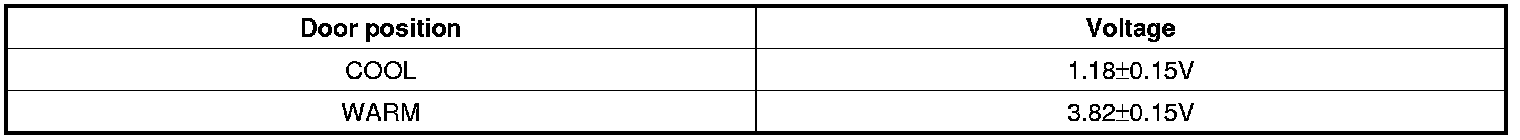

** Voltage value of Air Mix potentiometer as a function of temp door position.






Diagnostic Circuit Diagram
