General Information

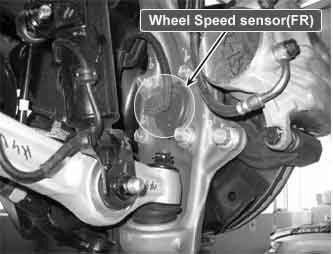

Component Location





General Description

Air conditioner Control Module detects ambient temperature only when vehicle is driving. To judge weather vehicle is driving or not, Air conditioner control module receives vehicle speed signal from Vdc through the CAN signal.

DTC Description

Air conditioner Control Module sets DTC B1686 if vehicle speed signal has not been received through the CAN signal.

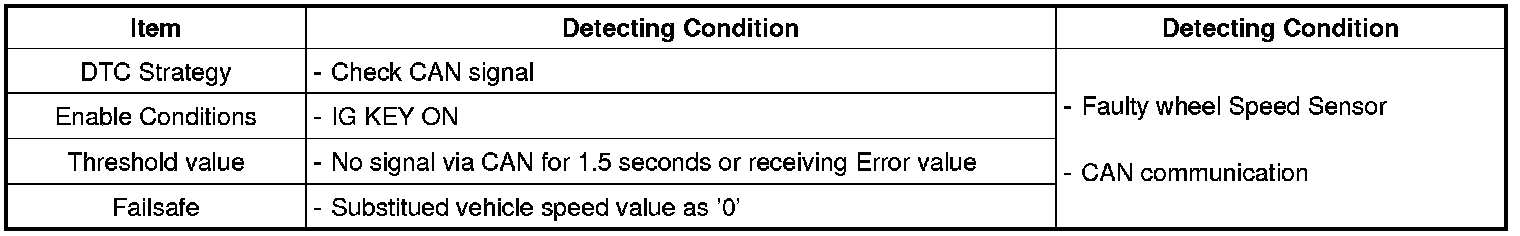

DTC Detecting Condition





Diagnostic Circuit Diagram
