Component Inspection

Component Inspection

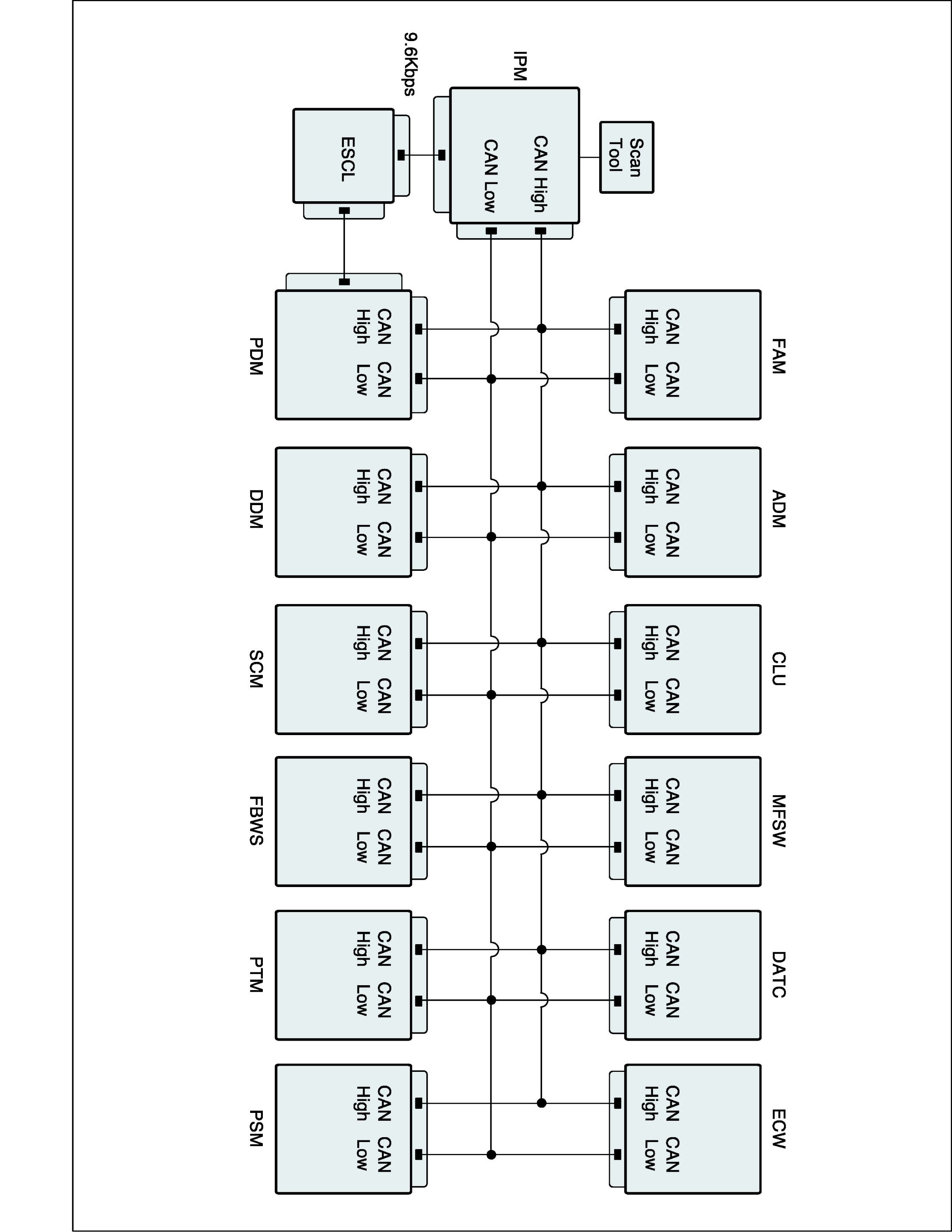

Check internal errors of CAN communication units.
1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. Replace SCM with the new one and check DTC again.








5. Is the code erased ?
