Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON" and Head lamp"ON"
3. Monitor the "Headlamp switch" parameters on the scantool.

Specification : Operation S/W -> ON, Not operation S/W -> OFF





Fig 1) Engine "ON"

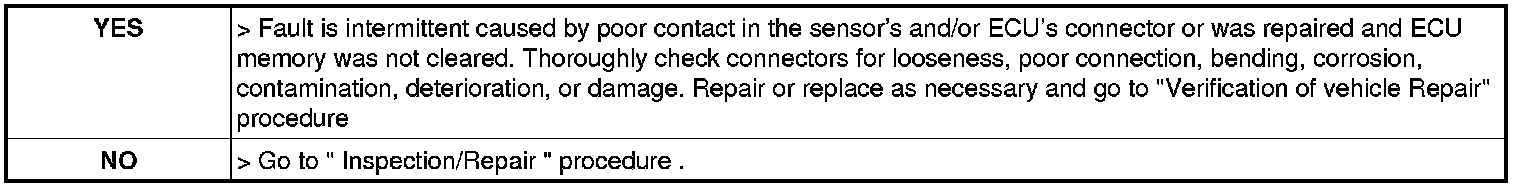

4. Is parameter displayed within specifications ?
