Component Inspection

Component inspection

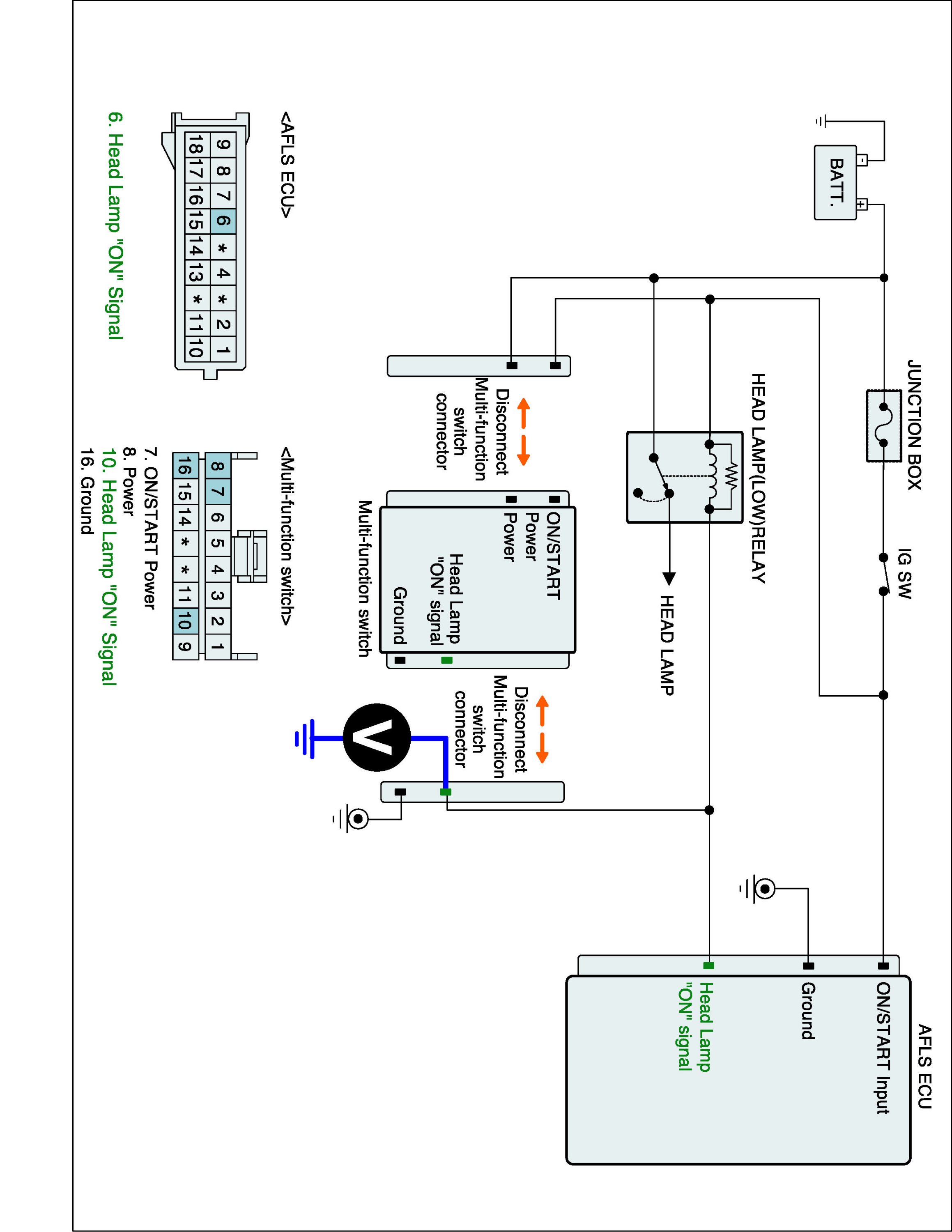

Head lamp (LOW) Relay Check
1. Ignition "OFF"
2. Disconnect Multi-function switch connector.
3. Ignition "ON"
4. Measure voltage between Head lamp switch signal terminal of Multi-function switch harness connector and and chassis ground.

Specification : B+

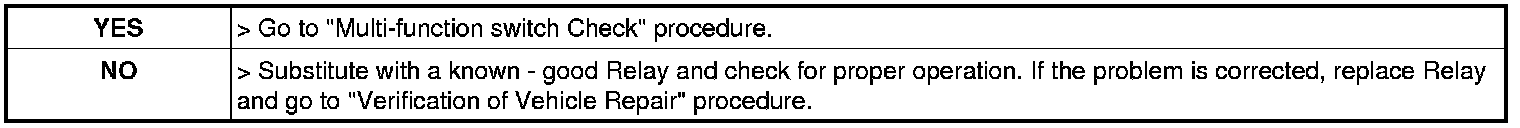

5. Is "voltage" display near the specified value ?

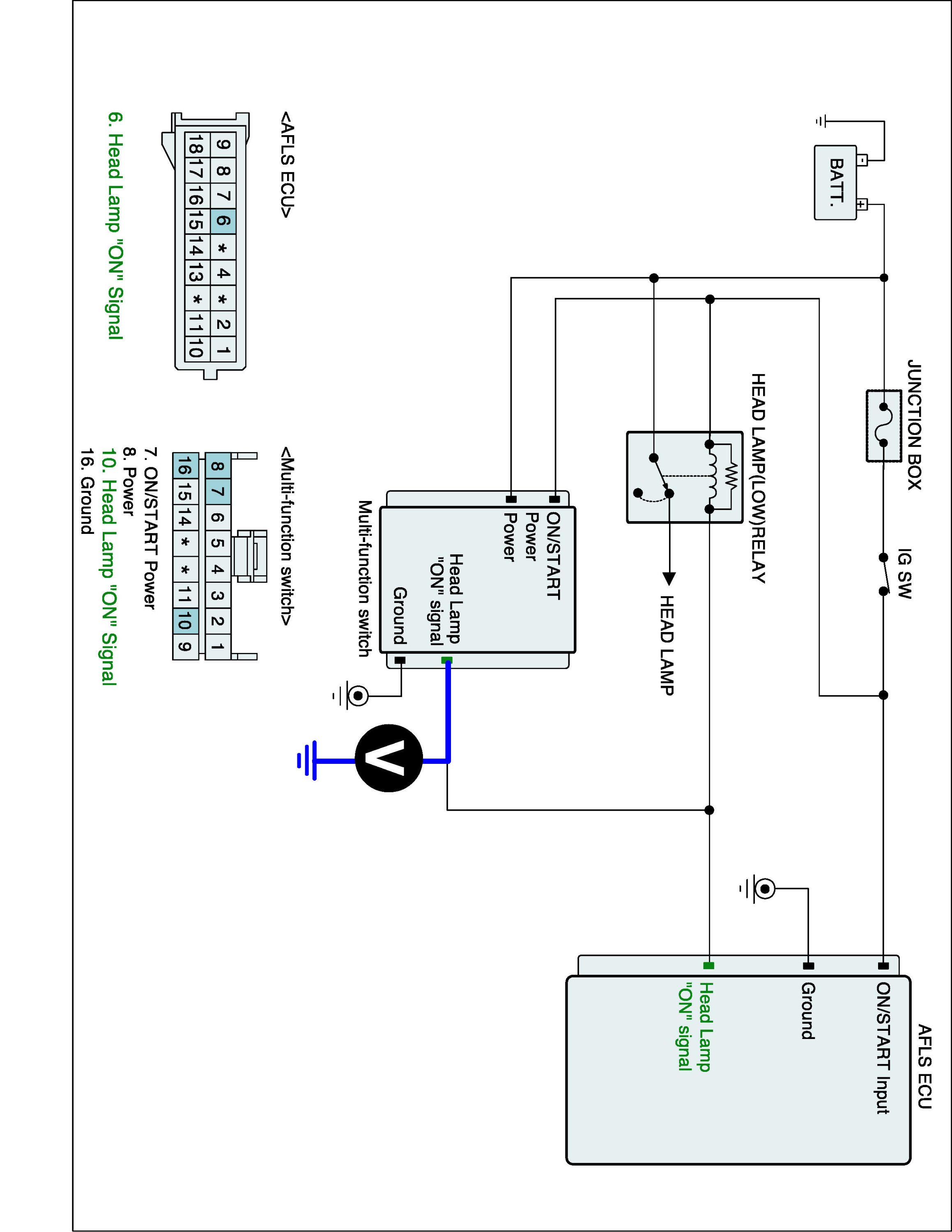

Multi-function switch Check
1. Ignition "OFF"
2. Connect Multi-function switch connector.
3. Ignition "ON"
4. Measure voltage for headlamp switch, When switch "ON" and "OFF".

Specification : switch "ON" approx, 0V, switch "OFF": B+

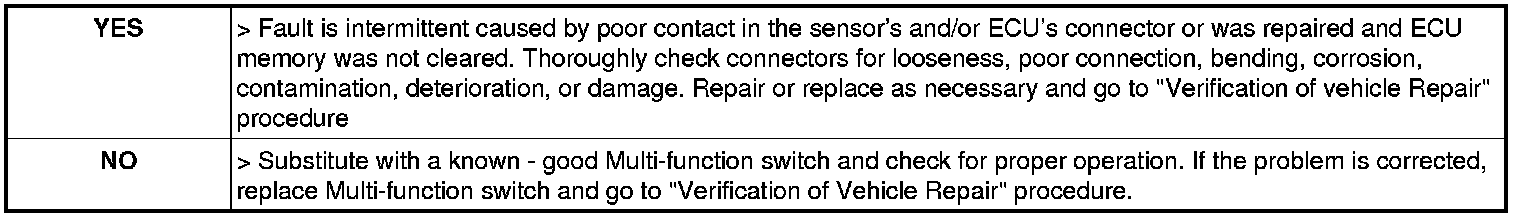

5. Is "voltage" display near the specified value ?
