Scantool Diagnostics

Scantool Data Analysis

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

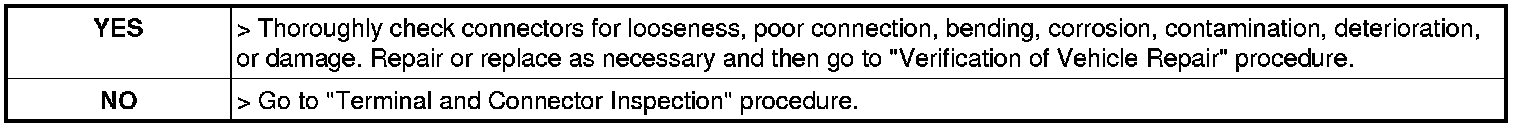

5. Is the same DTC occurred again ?





Scantool Data Analysis
1. IG "ON" & ENG "OFF"
2. After connect GDS, select "Current Date" menu.
3. Check whether "Turn Signal" is turned to "ON" when the turn signal switch is turned on.

Specification : Service data is switched. (ON <-> OFF)

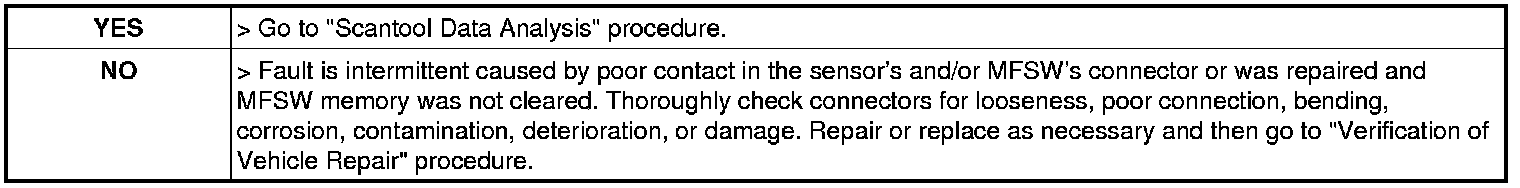

4. Is the service data normal ?
