Component Inspection

Component inspection

1. Ignition "OFF"
2. Connect AFLS OFF S/W connector.
3. Ignition "ON"

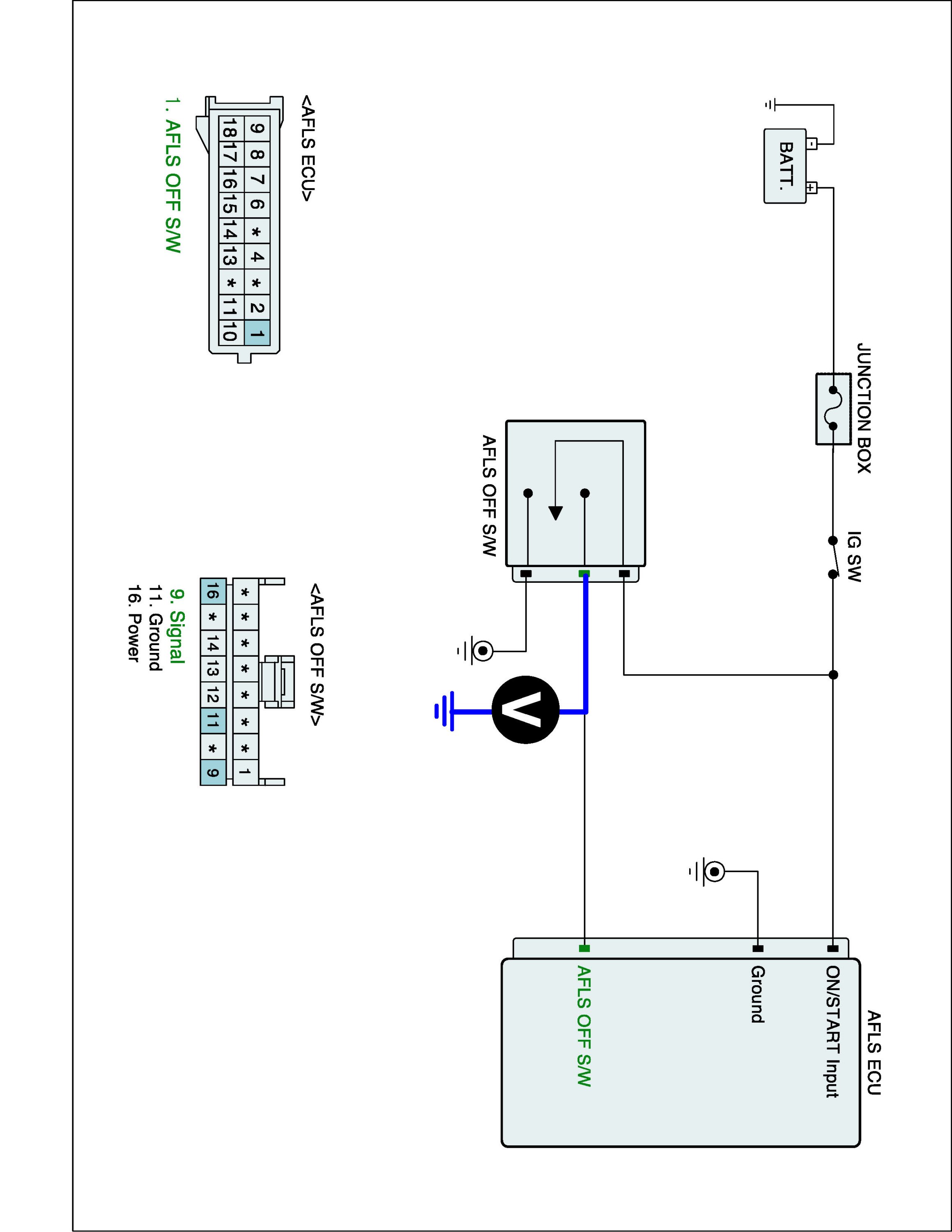

4. Measure voltage for AFLS OFF, When switch "ON" and "OFF".

Specification : switch "ON" approx, 0V, switch "OFF": B+

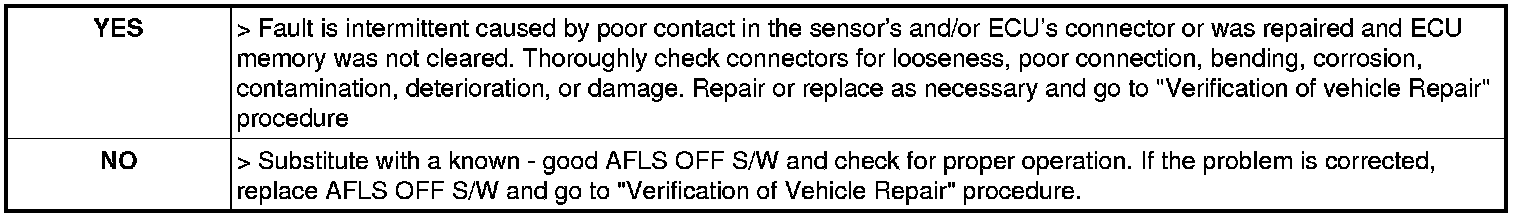

5. Is "voltage" display near the specified value ?
