Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON"
3. Monitor the "Gearbox signal" parameters on the scantool. (TCU's current data)




Fig 1) Engine "ON" (TCU's current data)

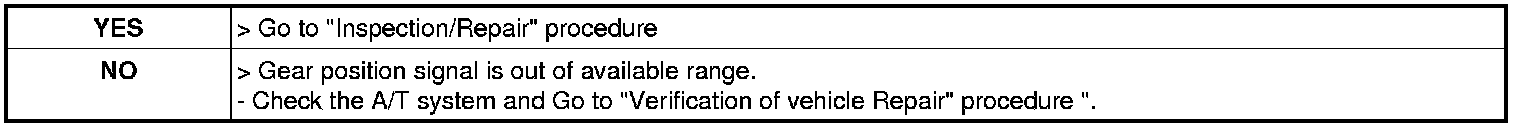

4. Is parameter displayed within specifications ?
