Reassembly

Reassembly (TJ-BJ Type)

1. Wrap tape around the driveshaft splines (TJ. side) to prevent damage to the boots.
2. To reassemble the dynamic damper, keeping the shaft in the straight, tighten the dynamic damper with dynamic damper band.

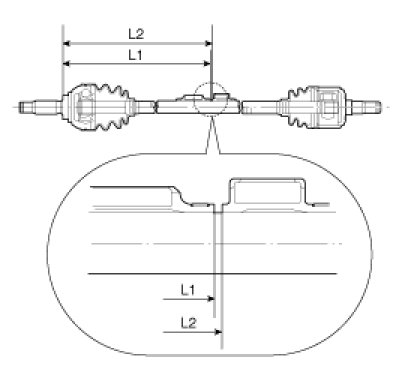

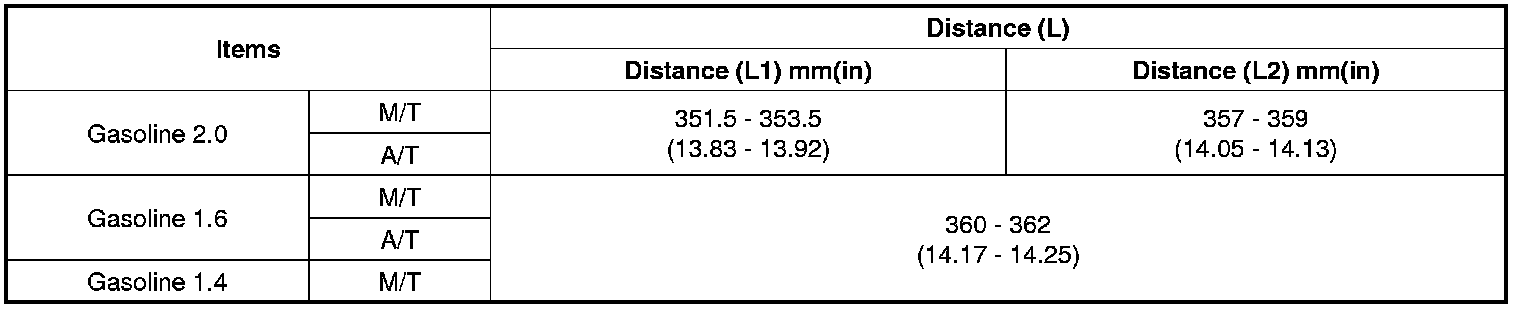

* Reassembling the dynamic dampers, keep the distance L1 and L2 to prevert the contact each dampers.
3. Install the TJ boot bands and TJ boot.

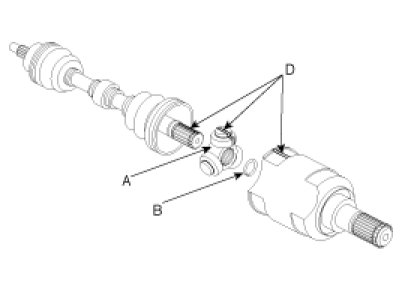

4. Install the spider assembly (A) and the circlip (B) to the spline (C) on driveshaft.
At this time align the marks (D) each other.








5. Add the specified grease to the TJ as mush as wiped away at inspection.
6. Install the TJ boots.

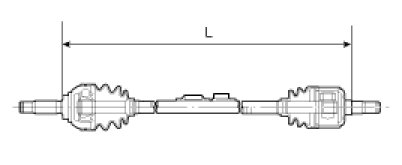

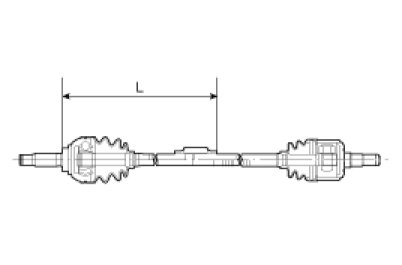

7. To control the air in the TJ boot, keep the specified distance between the boot bands when they are tightened.

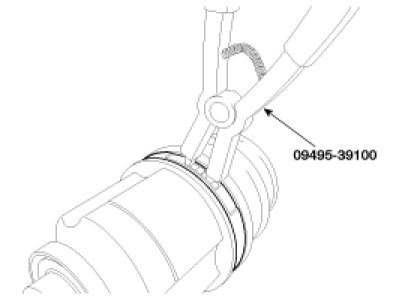

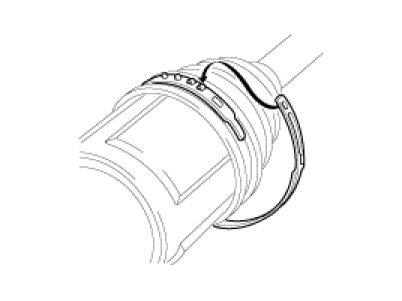

8. Using the SST (09454-39100), install the boot bands.










Reassembly (UTJ-BJ Type)

1. Wrap tape around the drive shaft splines (UTJ side) to prevent damage to the boots.
2. Apply grease to the joint(BJ) boot on the side of wheel and install the boots.
3. Install the bands to both boots.
4. To install the dynamic damper, keep the BJ shaft in a straight line and secure the dynamic damper with the dynamic damper bands.

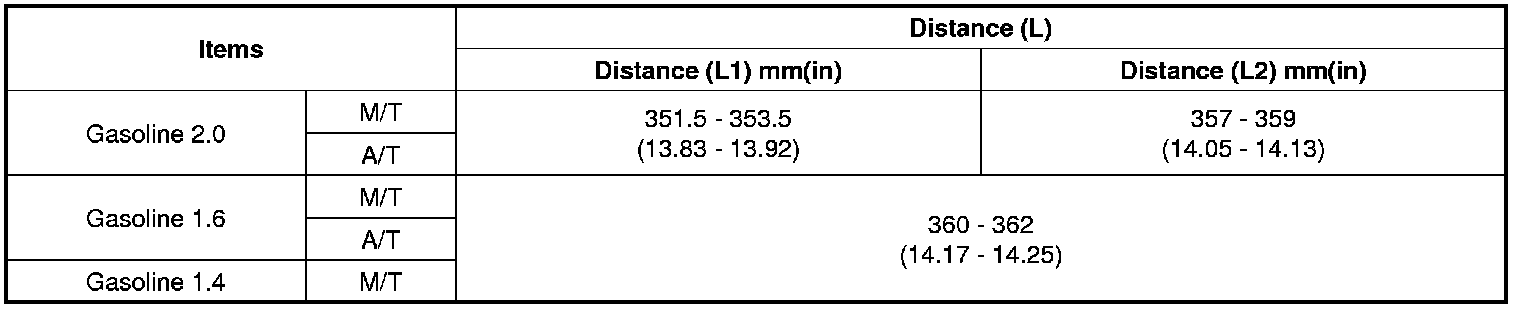

* Reassembling the dynamic dampers, keep the distance L1 and L2 to prevert the contact each dampers.
5. Install the UTJ boot bands and UTJ boot.

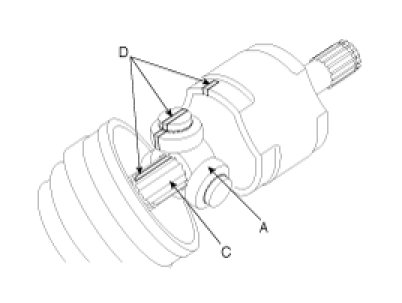

6. Using the alignment marks (D) made during disassembly as a guide, install the spider assembly (A) and snap ring (B) on the driveshaft splines (C).








7. Add the specified grease to the joint(UTJ) boot as mush as wiped away at inspection.
8. Install the boots.

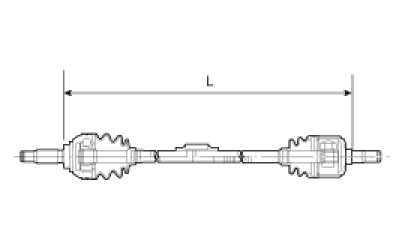

9. To control the air in the UTJ boot, keep the specified distance between the boot bands when they are tightened.

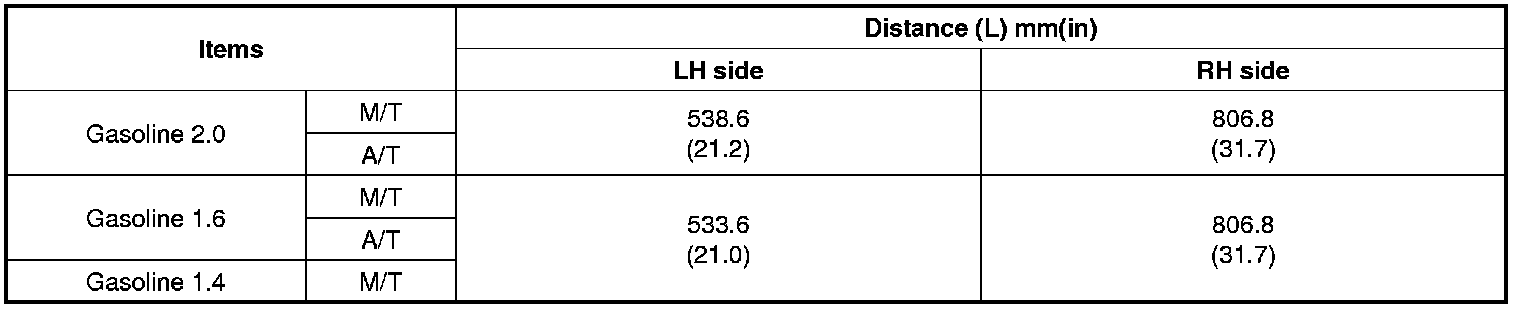

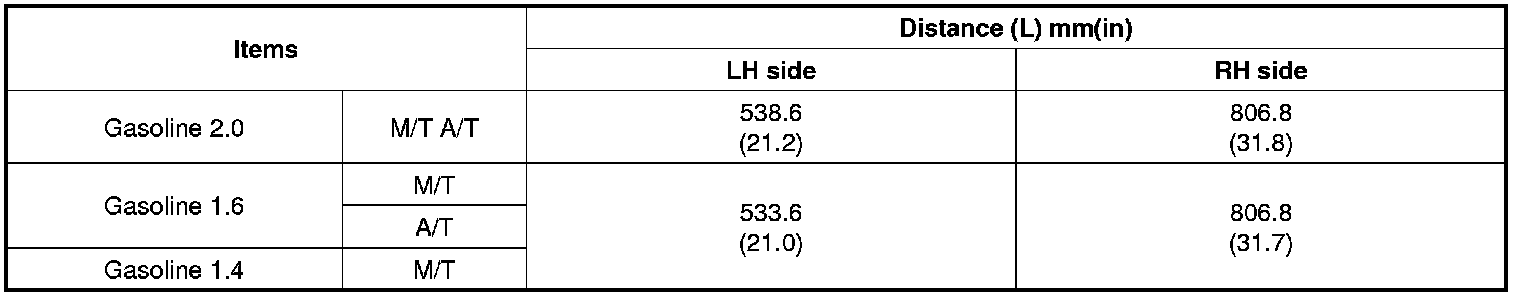

Standard value [L]













10. Using the SST(09454-39100), install the boot bands.
