Specifications
>>
Mechanical Specifications
>>
Clutch, M/T
>>
Pressure Plate
Pressure Plate

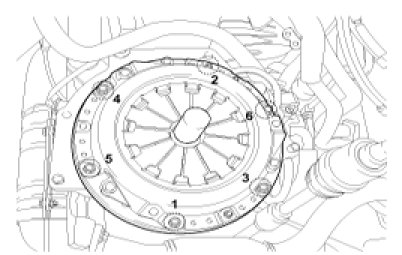

Clutch Cover
Tighten the bolts one or two steps at a time in a star pattern.
Tightening torque
15 - 22 Nm (1.5 - 2.2 kgf.m, 10.9 - 16.0 lb-ft)
