Home >> Hyundai >> 2009 >> Elantra L4-2.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Testing and Inspection >> ESC(Electronic Stability Control) System

ESC(Electronic Stability Control) System

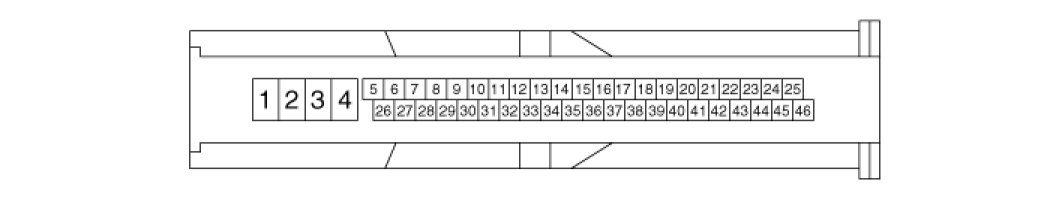

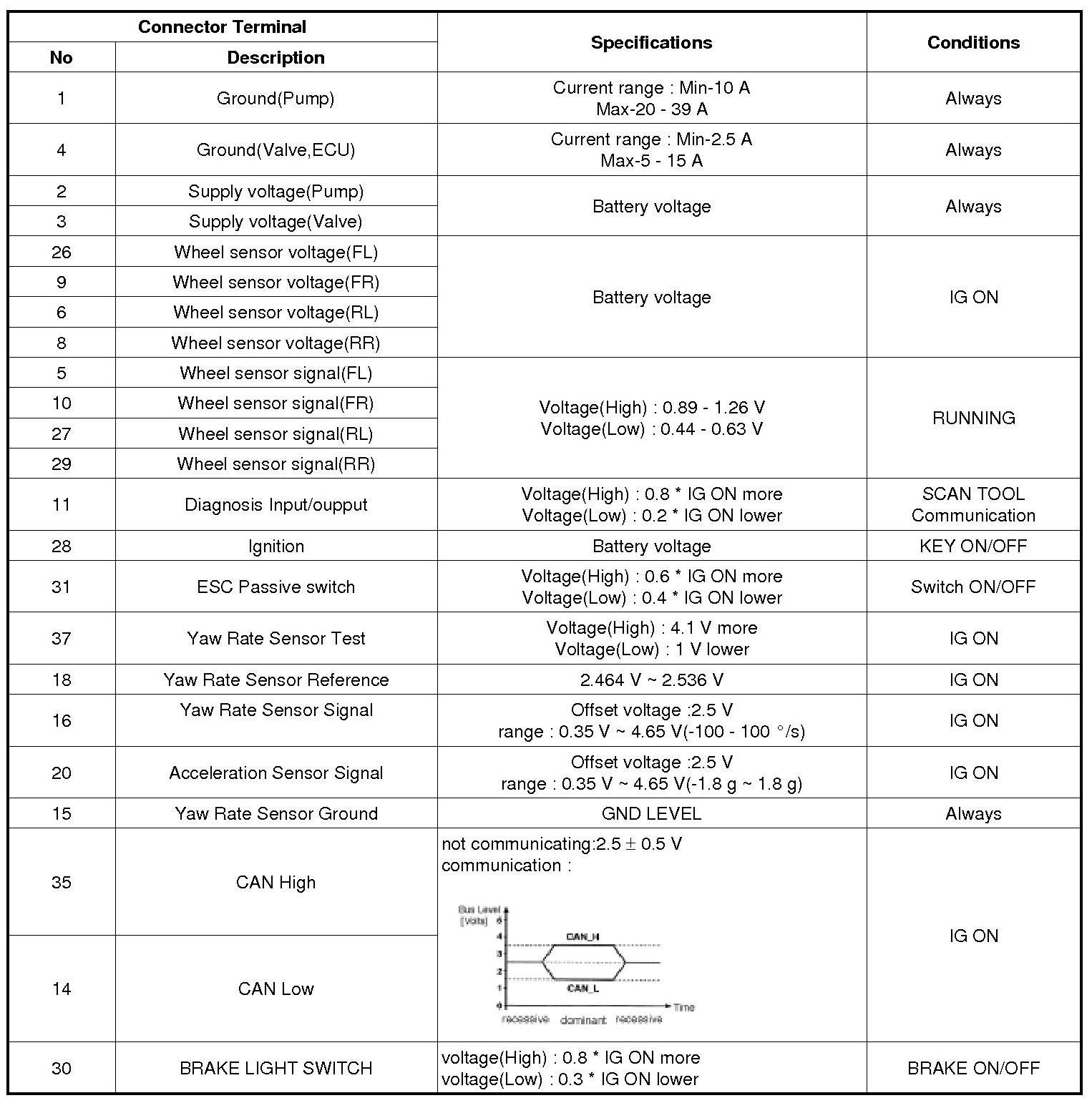

ESC HECU Connector Input / Output
