Home >> Hyundai >> 2009 >> Elantra L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Service and Repair >> Components and Components Location

Components and Components Location

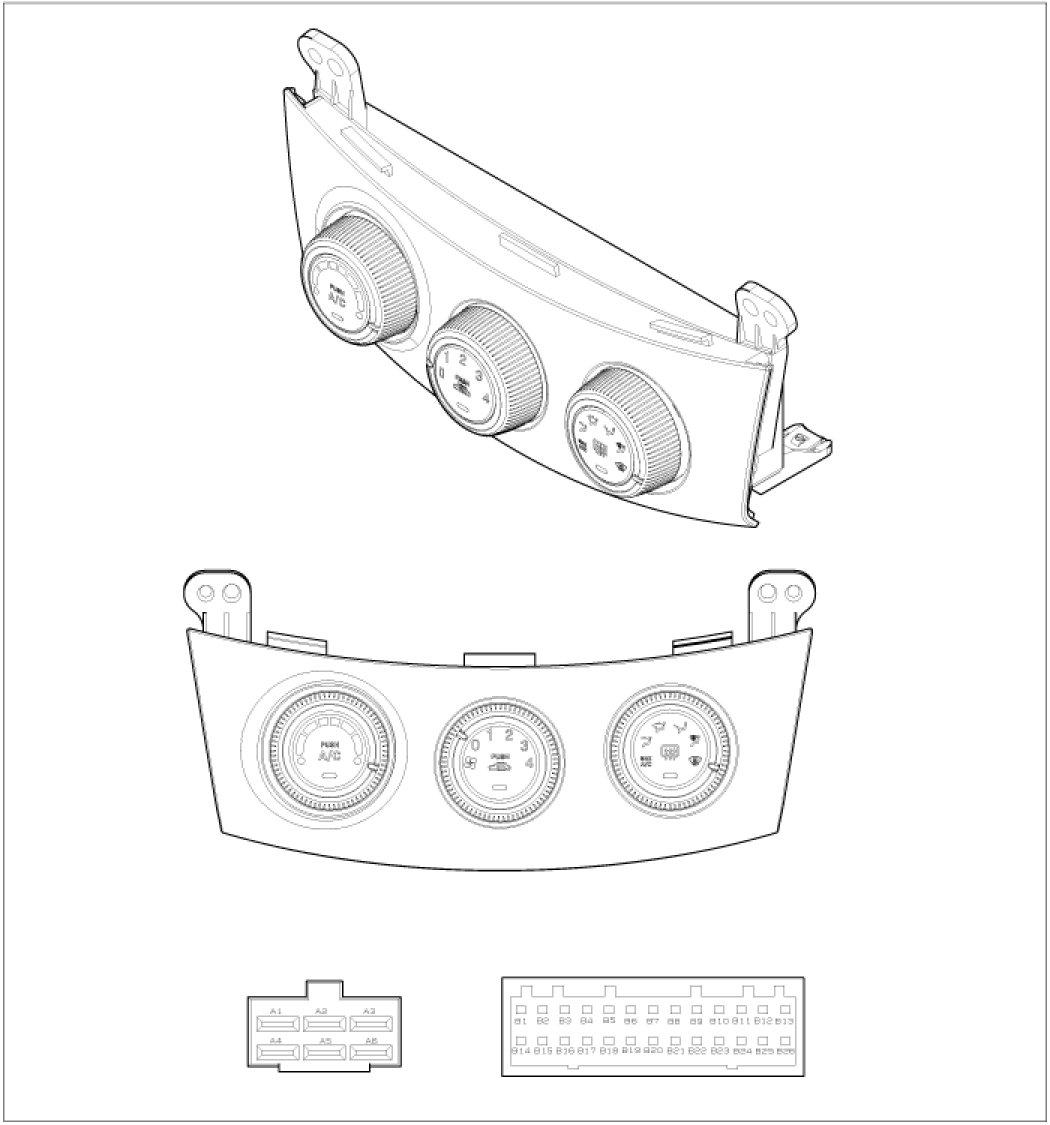

Component

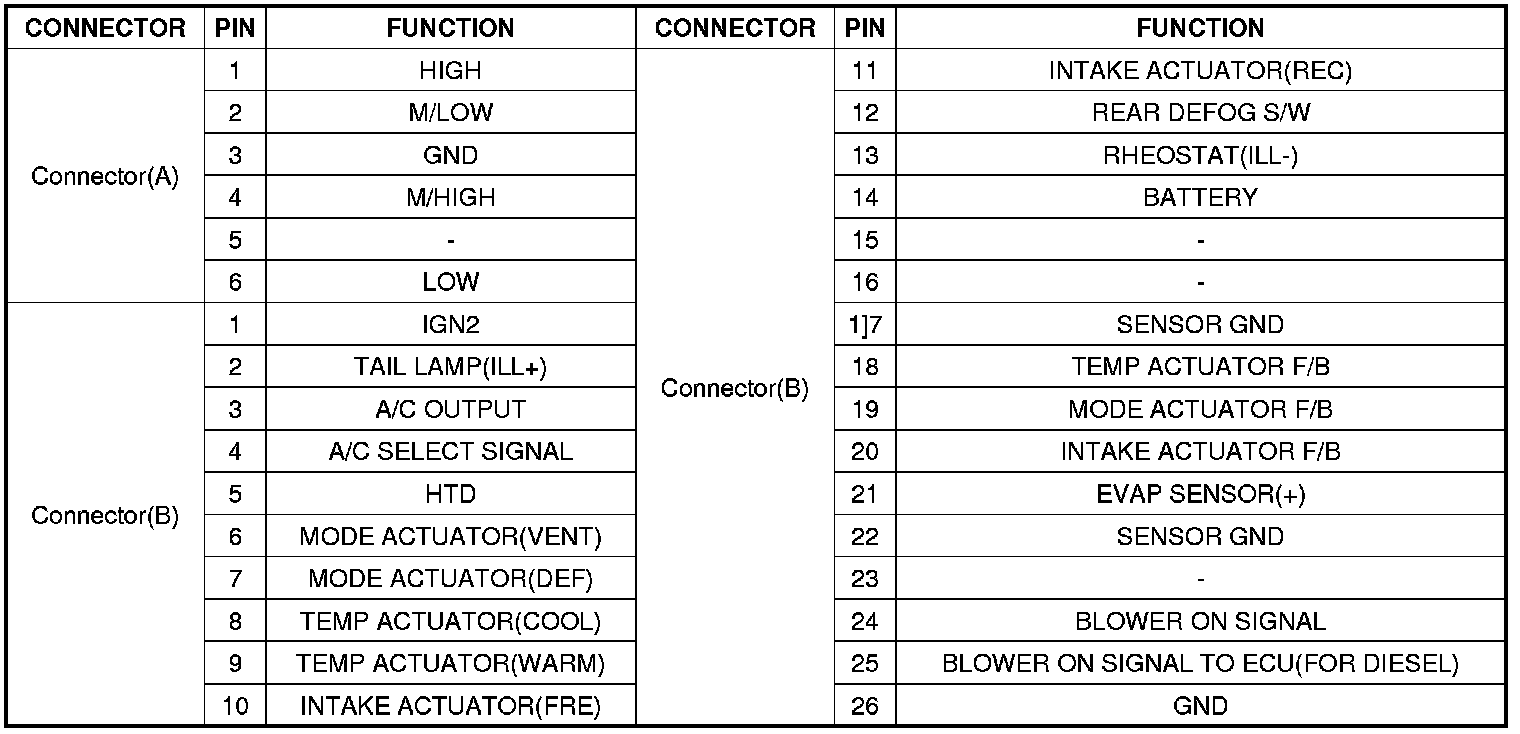

[CONNECTOR PIN FUNCTION]

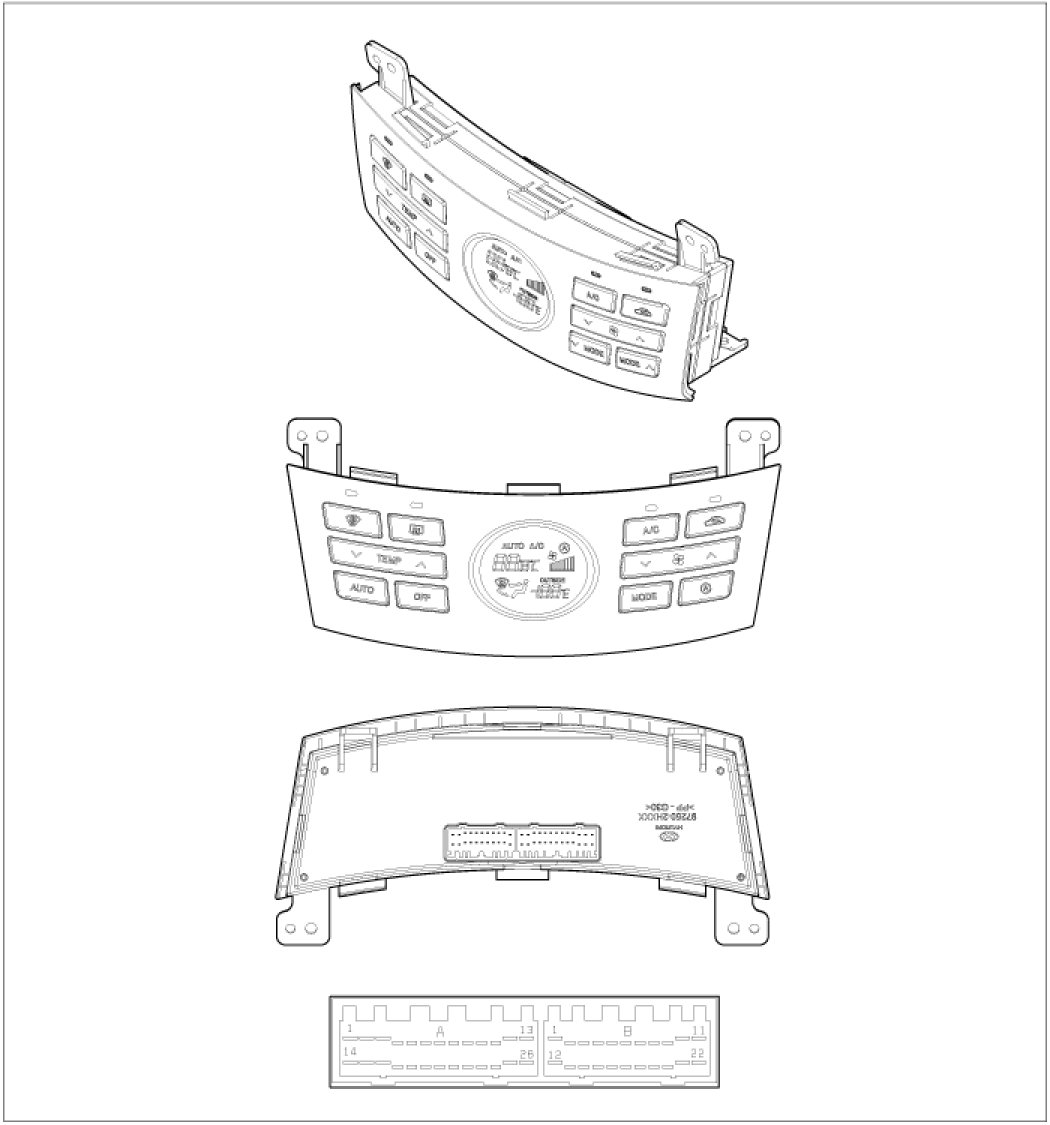

COMPONENT

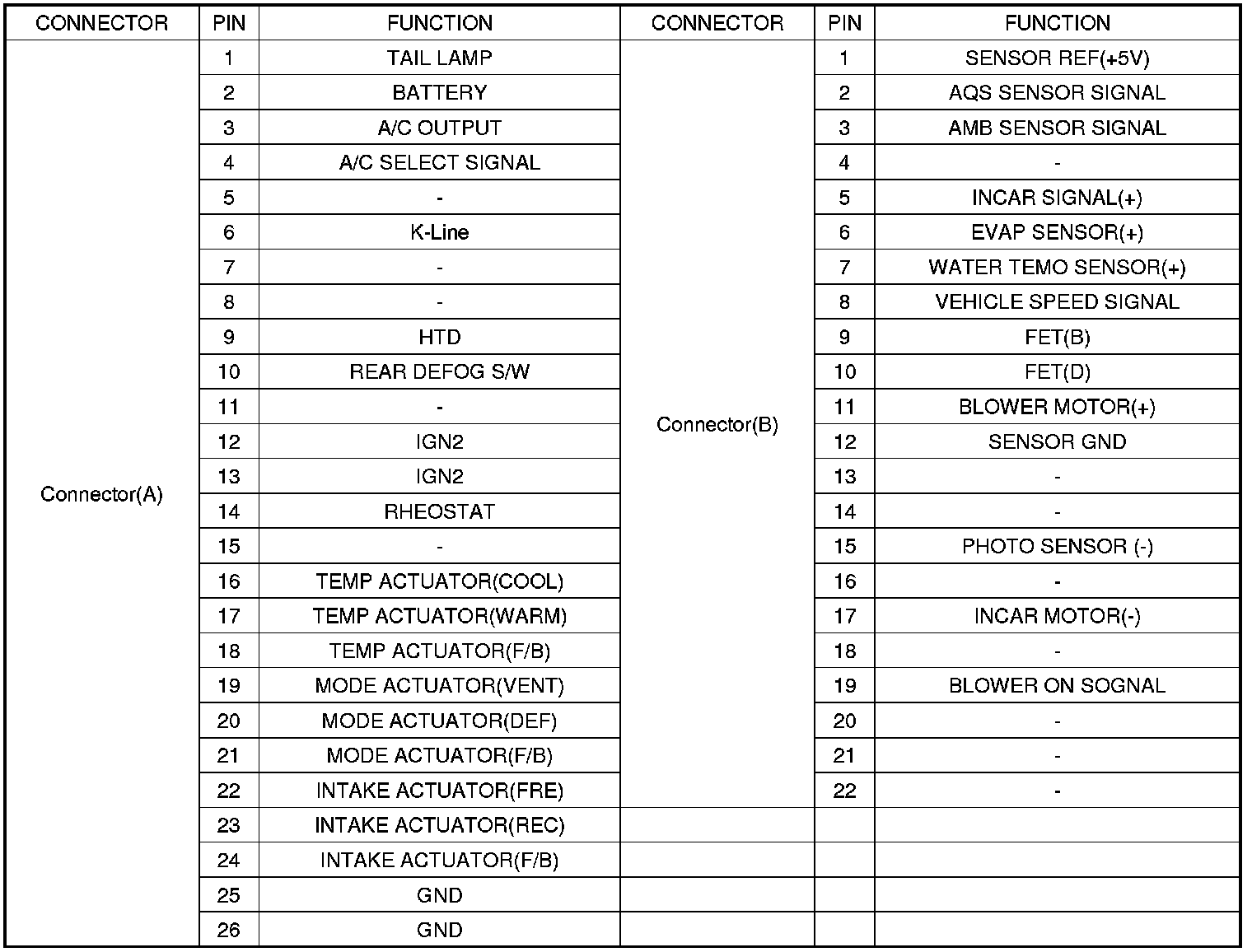

[CONNECTOR PIN FUNCTION]
