Valve Clearance

Valve Clearance

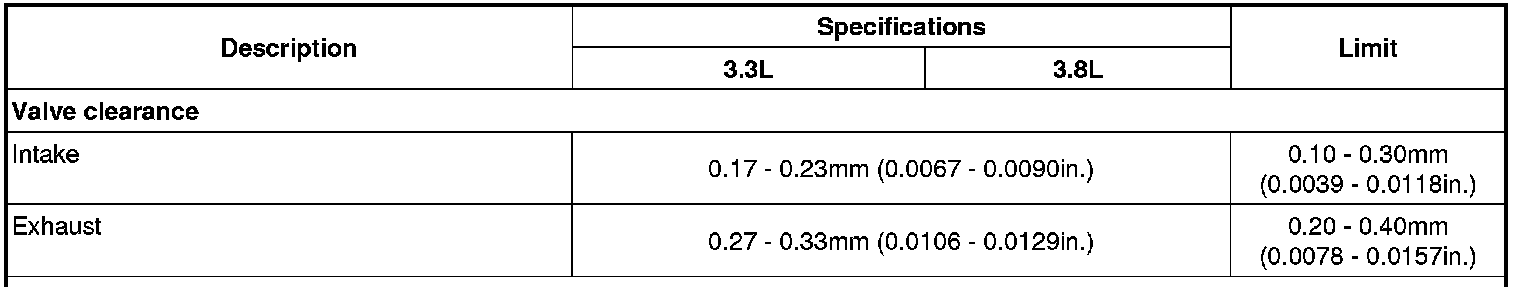

Valve clearance
Specification
Engine coolant temperature 20 °C [68 °F]

Limit
Intake 0.10 - 0.30 mm (0.0039 - 0.0118 in.)
Exhaust 0.20 - 0.40 mm (0.0079 - 0.0157 in.)

(Engine coolant temperature 20 °C[68 °F])
Intake 0.17 - 0.23 mm (0.0067 - 0.0090 in.)
Exhaust 0.27 - 0.33 mm (0.0106 - 0.0129 in.)
