Home >> Hyundai >> 2009 >> Azera V6-3.8L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Testing and Inspection >> ESC(Electronic Stability Control System)

ESC(Electronic Stability Control System)

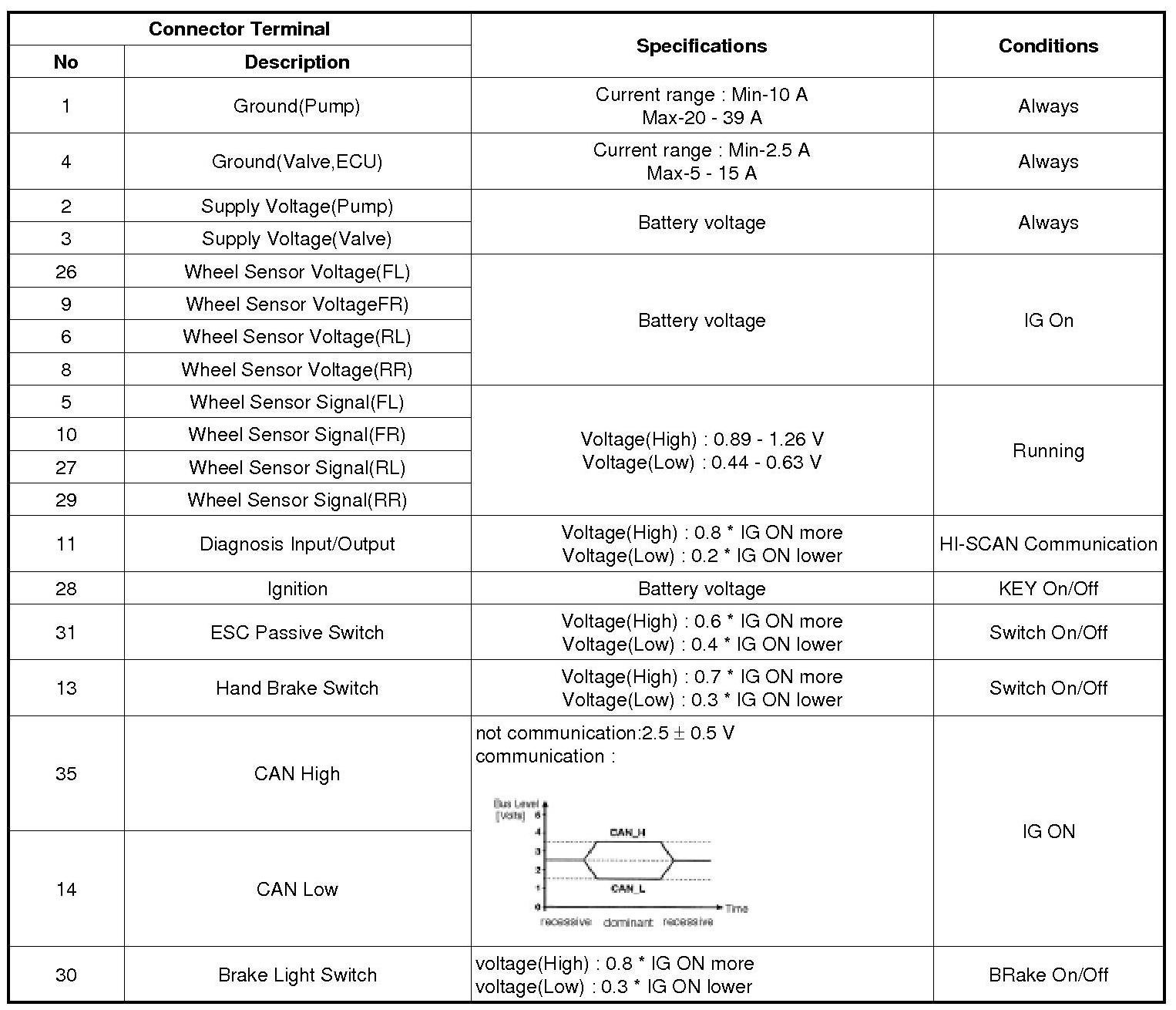

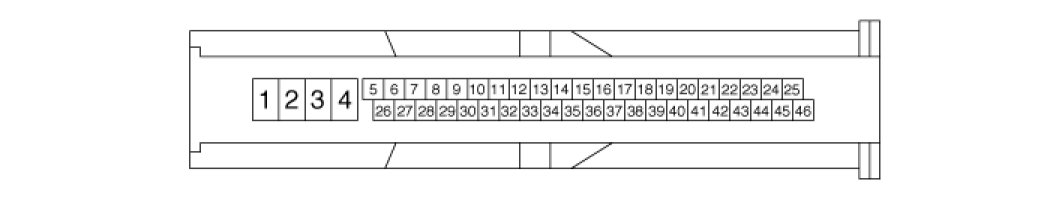

ESC HECU Connector Input / Output
