ABS(Anti-Lock Brake System)

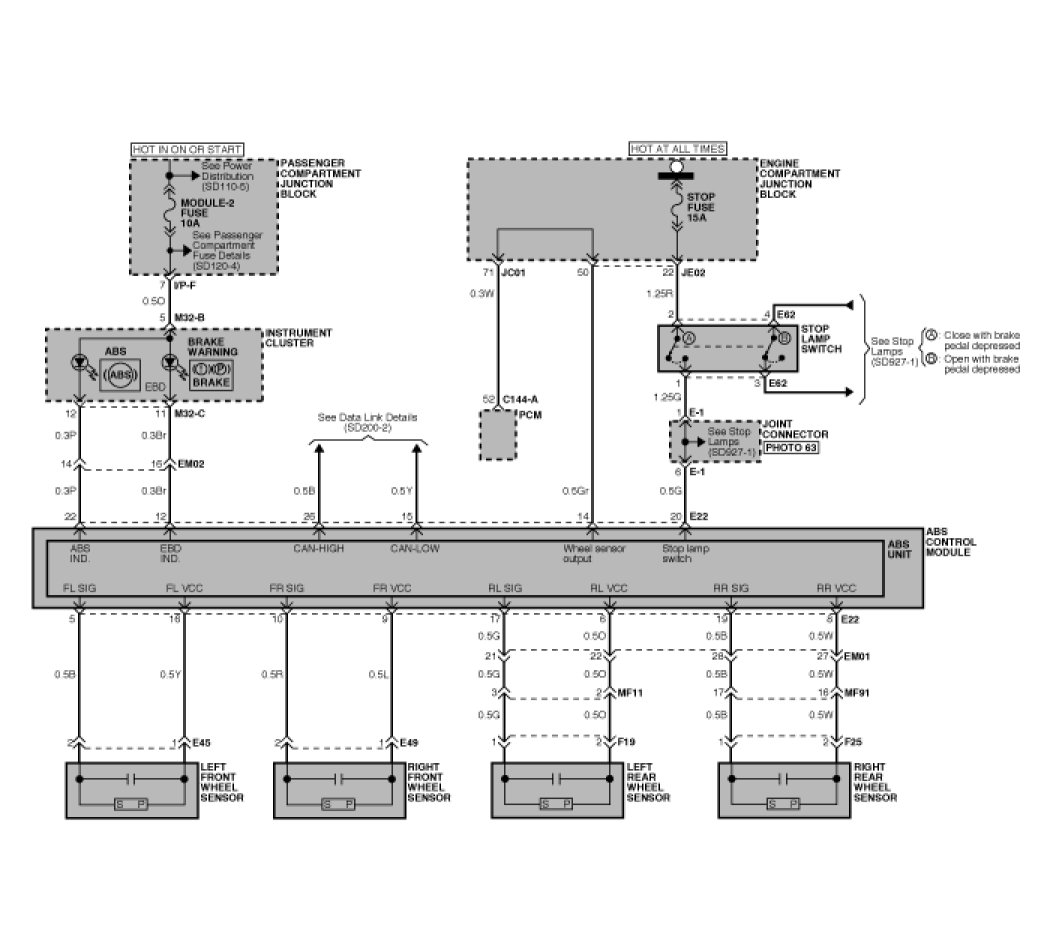

ABS Circuit Diagram(1)





ABS Circuit Diagram(2)





Sensor Output On Hi-scan(ABS)
