Body Electrical System

Inspection

Parking Brake Switch

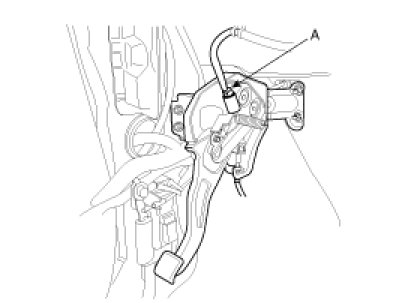

The parking brake switch (A) is a push type. It is located at the side of the parking brake pedal. To adjust, move the switch mount up and down with the parking brake pedal released all the way.
1. Check that there is continuity between the terminal and switch body with the switch ON. (Pedal is pushed)
2. Check that there is no continuity between the terminal and switch body with the switch OFF. (Pedal is released)
If continuity is not as specified, replace the switch or inspect its ground connection.
