Recliner Cover Replacement

Recliner Cover Replacement

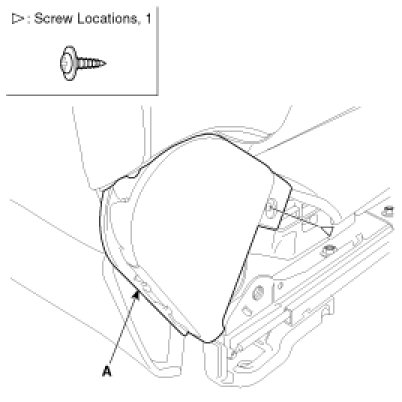

1. Remove the cover (A).

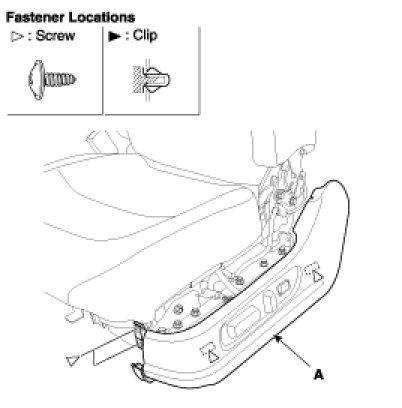

2. Loosen the recliner mounting screw and clip, then remove the recliner cover (A).




3. Remove the front seat buckle.
4. Loosen the mounting screw, then remove the cover (A).




5. Installation is the reverse of removal.

NOTE:
- Be sure to perform PODS re-zero with Hi-scan (pro) after replacing parts (Passenger's)
