Speaker: Service and Repair

Replacement

Front Speaker
1. Remove the front door trim panel .

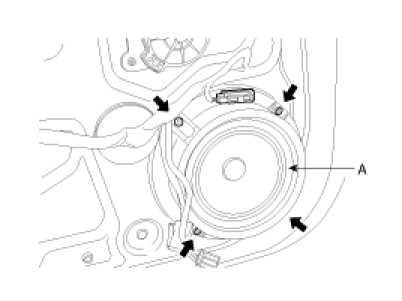

2. Remove the front speaker (A) after removing 4 rivets.




3. Installation is the reverse of removal.

Rear Speaker
1. Remove the rear door trim panel .

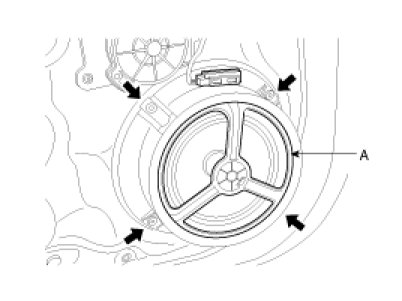

2. Remove the rear speaker (A) after removing 4 rivets.




3. Installation is the reverse of removal.

Tweeter Speaker
1. Remove the front door trim panel .

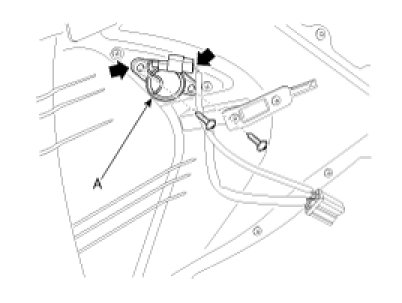

2. Remove the tweeter speaker (A) after loosening 2 screws and disconnecting the connector.




3. Installation is the reverse of removal.

Woofer Speaker
1. Remove the rear seat.
2. Remove the rear package tray.

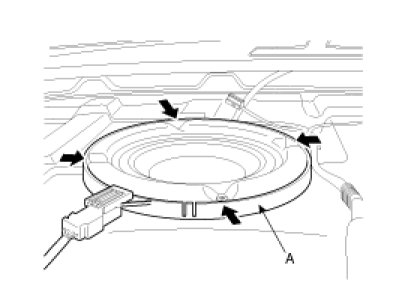

3. Remove the woofer speaker (A) after removing 4 bolts.




4. Installation is the reverse of removal.

External Amplifier
1. Remove the right luggage side trim.
2. Remove the external amplifier (B) from the quarter inner panel (A) after removing 3 nuts.




3. Installation is the reverse of removal.

Front Center Speaker

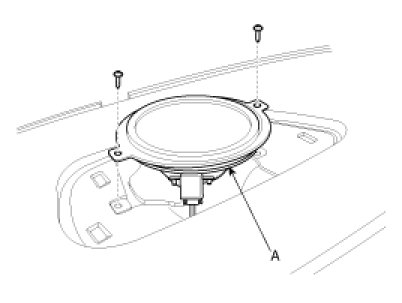

1. Remove the center speaker (A) after front center speaker grill.




2. Installation is the reverse of removal.

Sdars Roof Antenna
1. Remove the rear headlining.

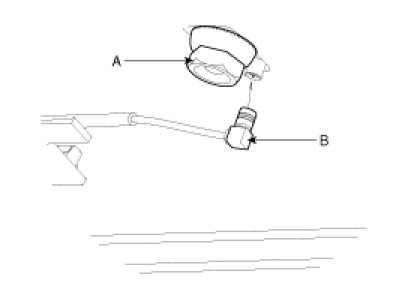

2. Remove the SDARS roof antenna from the roof inner panel after loosening the mounting nut(A) and disconnecting the cable(B).




3. Installation is the reverse of removal.
