Component Inspection

Component Inspection

1. Ignition "OFF"
2. Remove Fuel Sender & Fuel pump motor and Fuel level sensor from tank
3. Measure the resistance of each fuel level sensor. (Component Side)

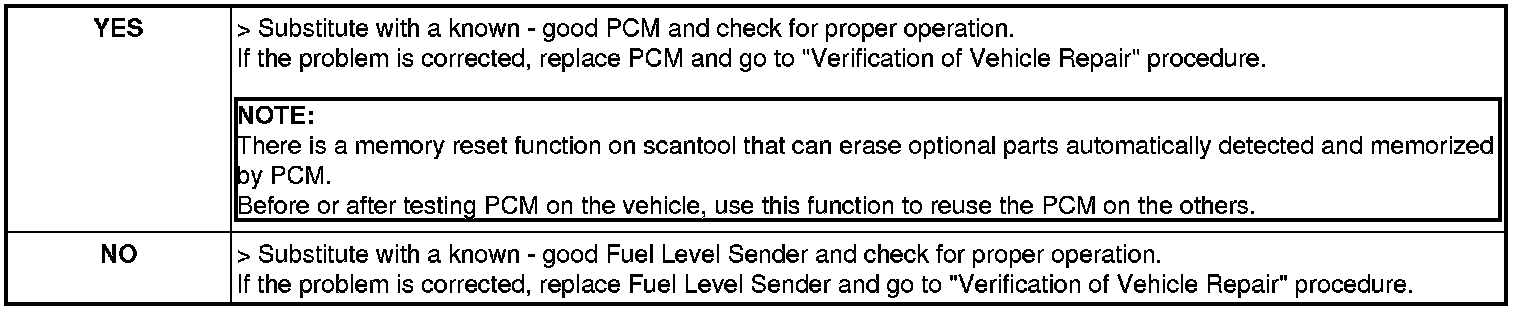

4. Does the resistance of FLS change as lifting up and down the fuel level float ?






NOTE:
** Procedure of ETS Initialization
1. Erase the trouble codes on PCM
2. Turn the ignition key off and keep this condition until the main relay is turned off. (It will takes 10 sec.)
3. Turn ignition key on more than 1 second to record the throttle motor position on the EEPROM
