W/Harness Inspection

Main harness Circuit Inspection

1. Ignition "OFF".
2. Disconnect the battery (-) terminal cable from the battery and wait at least one minutes.
3. Disconnect DBPT connector and SRSCM main harness connector.
4. Measure resistance between terminal "2" and "1" of the DBPT harness connector.

Specification :approx. 1 Ohms below

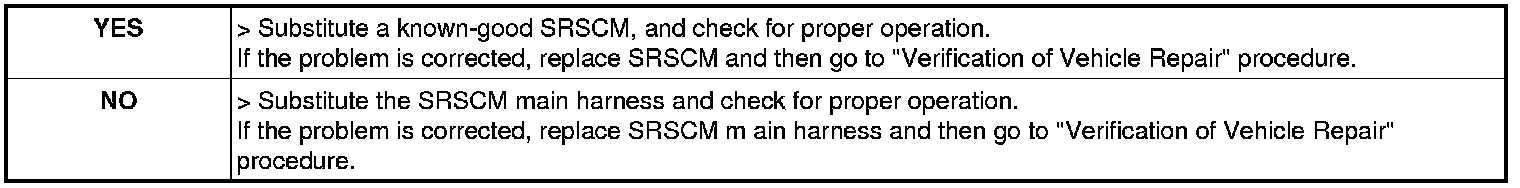

5. Is the measured resistance within specifications?
