ABS(Anti-Lock Brake System)

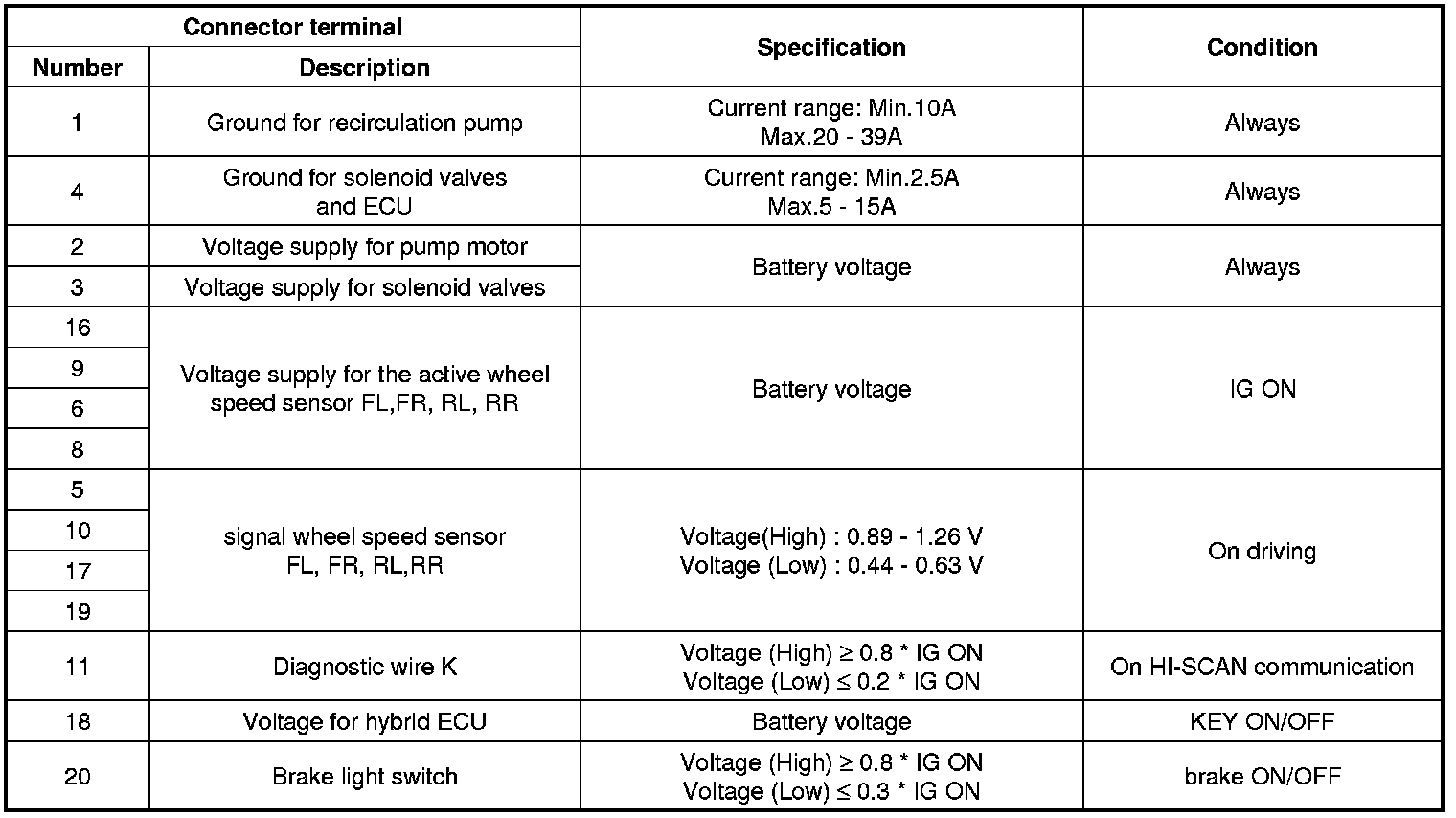

ECU Connector Input/Output(ABS)

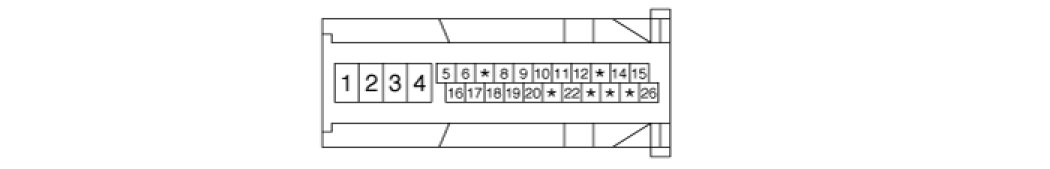

ABS HECU Connector

Sensor Output On Hi-scan(ABS)
