Temperature Control Actuator

Inspection

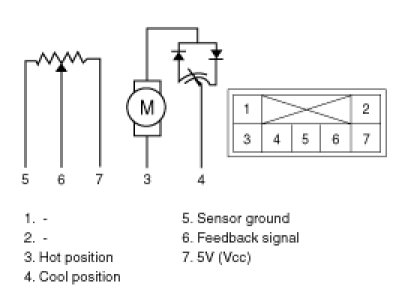

Temperature Control Actuator(passenger's)
1. Verify the temperature control actuator operates to the hot position when connecting 12V to the terminal 3 and grounding terminal 4.
Verify that the temperature control actuator operates to the cool position when connecting in the reverse.




2. Check the voltage between terminals 5 and 6.

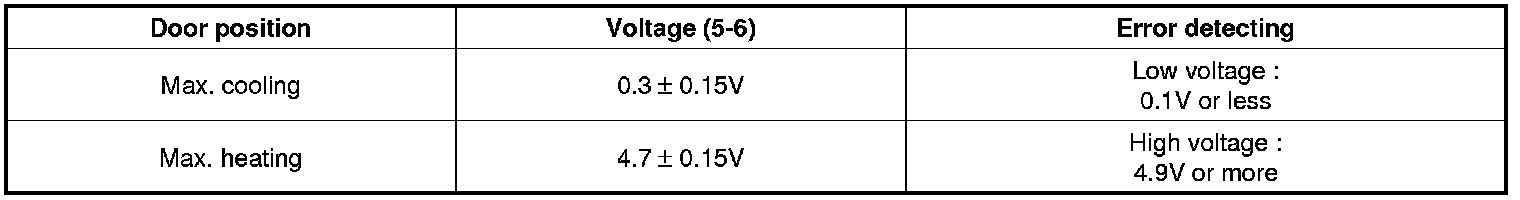

Specification





It will feedback current position of actuator to controls.

Temperature Control Actuator(driver's)
1. Verify the temperature control actuator operates to the hot position when connecting 12V to the terminal 3 and grounding terminal 4.
Verify that the temperature control actuator operates to the cool position when connecting in the reverse.




2. Check the voltage between terminals 5 and 6.
Specification
