Seat Cushion: Service and Repair

Seat Cushion Cover Replacement

1. Remove front seat assembly.
2. Remove the recliner cover.

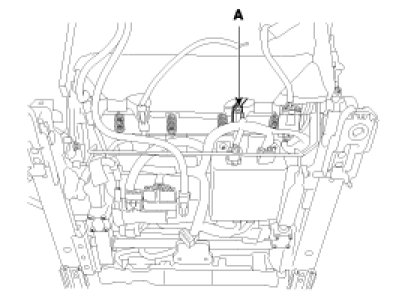

3. Disconnect the connector (A).

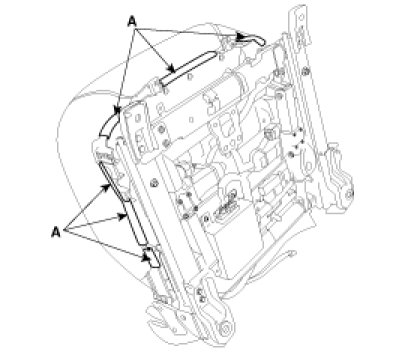

4. Disconnect the protector (A).

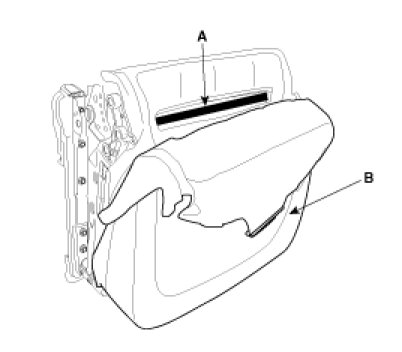

5. Disconnect the aplix (A) on the front of seat cushion and remove the seat cushion cover (B).




6. Installation is the reverse of removal.

NOTE:
- The passenger's front seat cushion is not serviceable (PODS)
