Motor Replacement

Motor Replacement

1. Remove the overhead console.

NOTE:
Confirm the position of guide whether it is closed or not when you remove the motor.

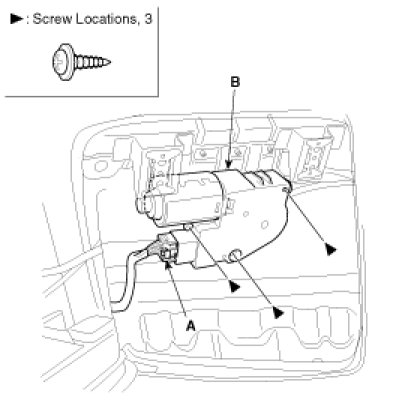

2. Disconnect the motor connector (A), remove the screws and then remove the motor (B).




3. Installation is the reverse of removal.

NOTE:
- Make sure to initialize the motor.
