Sunroof / Moonroof Gear Assembly: Service and Repair

Replacement

Guide Assembly Replacement

1. Remove the sunroof assembly.
2. Remove the motor.

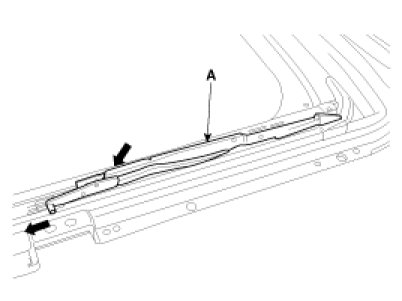

3. Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide (B) to rear.

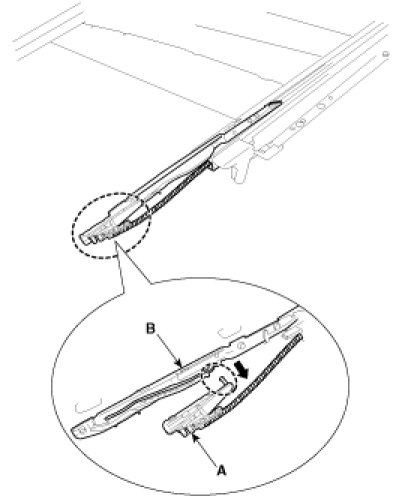

4. Remove the guide (A) and slide (B).




5. Installation is the reverse of removal.

NOTE:

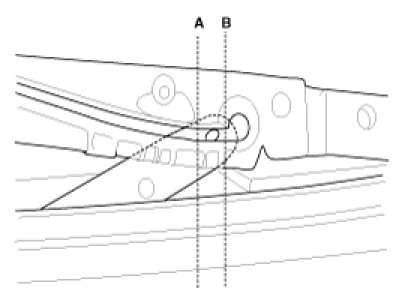

- Make sure to align the slide with the center of "A" and "B"
- Make sure to initialize the motor.
