Arm Rest: Service and Repair

Armrest Replacement

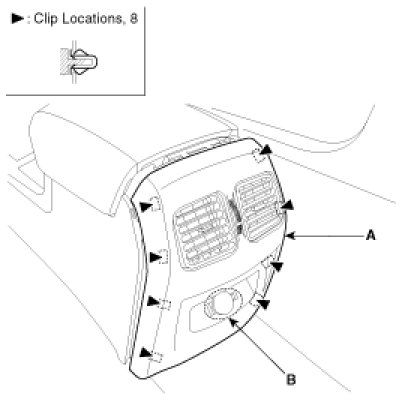

1. After remove the rear console cover (A), disconnect the connector (B).

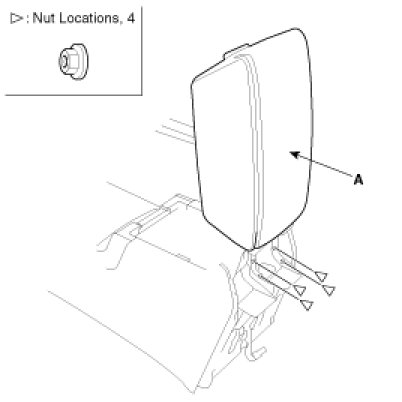

2. After loosening the armrest mounting nuts, remove the armrest (A).




3. Installation is the reverse of removal.
