Home >> Hyundai >> 2009 >> Azera V6-3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0885 >> Component Inspection

Component Inspection





Component Inspection

1. Ignition "OFF".
2. Remove "A/T CONTROL RELAY"
3. Measure the resistance between each terminal of the sensor

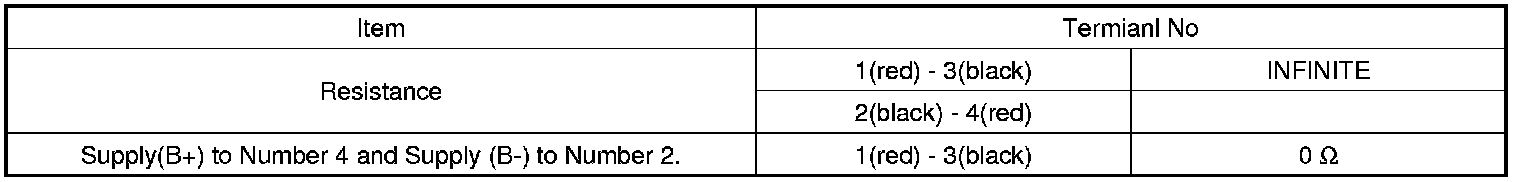

Specification :

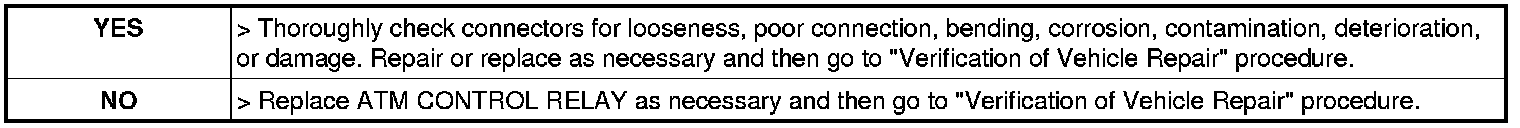

4. Is resistance with in specification ?
