Home >> Hyundai >> 2009 >> Accent L4-1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine and Transaxle Assembly

Engine and Transaxle Assembly

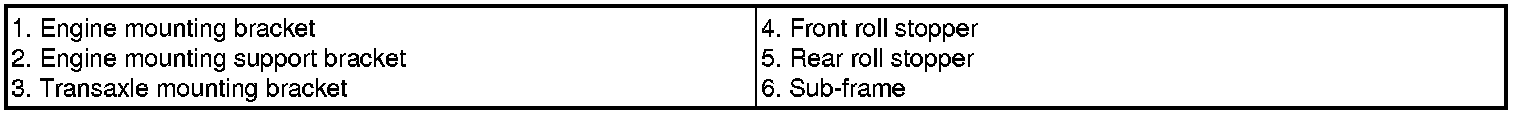

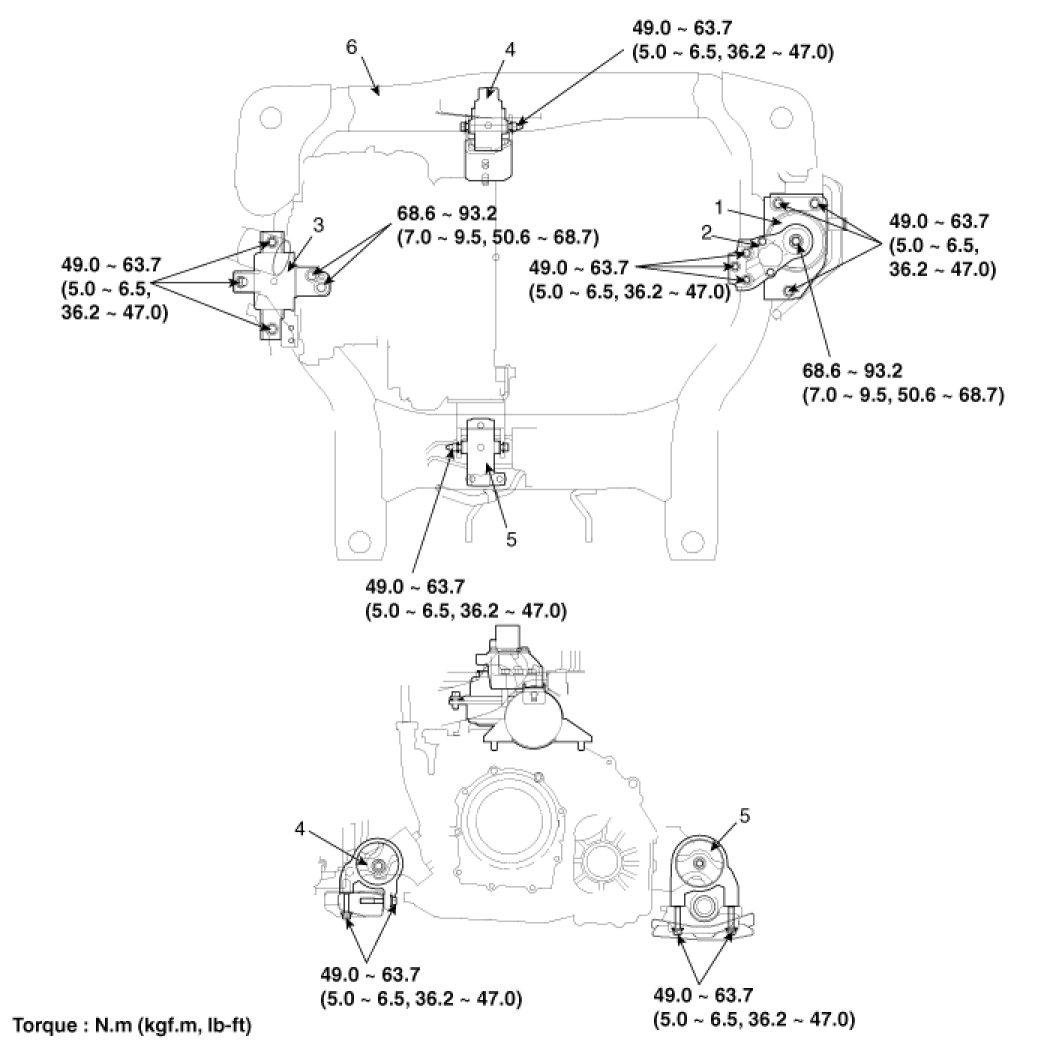

Components
