Rear Center Seat Belt Replacement

Replacement

Rear Center Seat Belt Replacement
1. Remove the following items first.
A. Rear seat assemble.
B. Rear wheel guard and rear door scuff trim.
C. Rear piller trim.
D. Package tray.

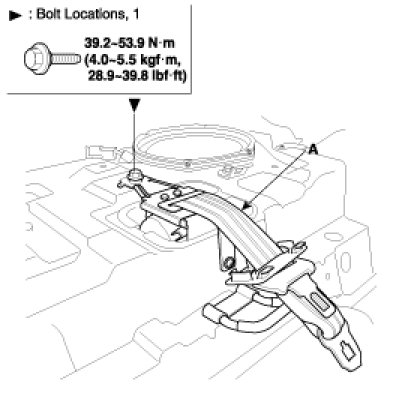

2. Remove the rear center seat belt(A).




3. Installation is the reverse of removal.
