Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2009
>>
Accent L4-1.6L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Connector Views
Connector Views

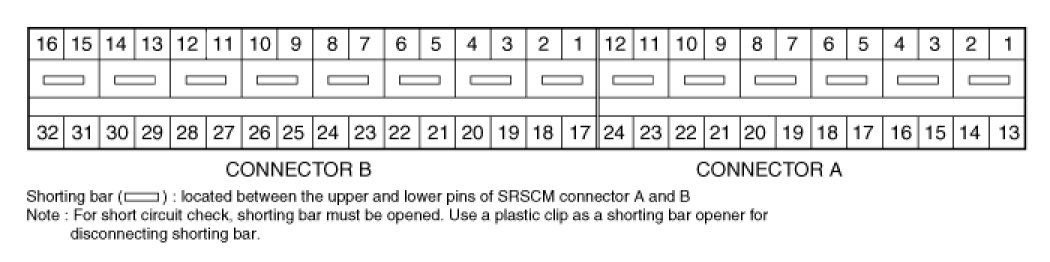

SRSCM Connector Terminal
SRSCM Harness Connector

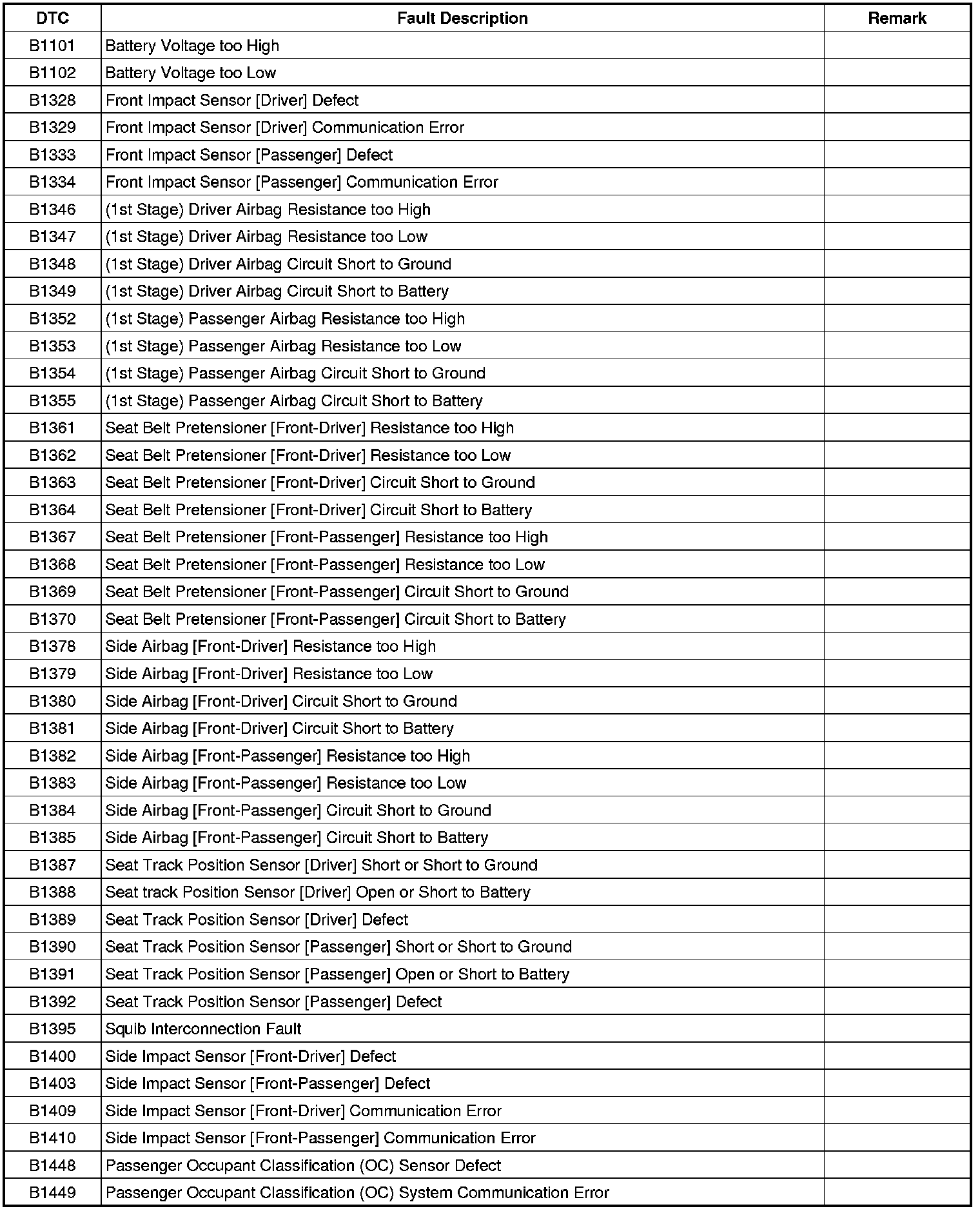

Diagnostic Trouble Codes (DTC)
