Idle Speed/Throttle Actuator - Electronic
Idle Speed/Throttle Actuator - Electronic
Circuit Diagram

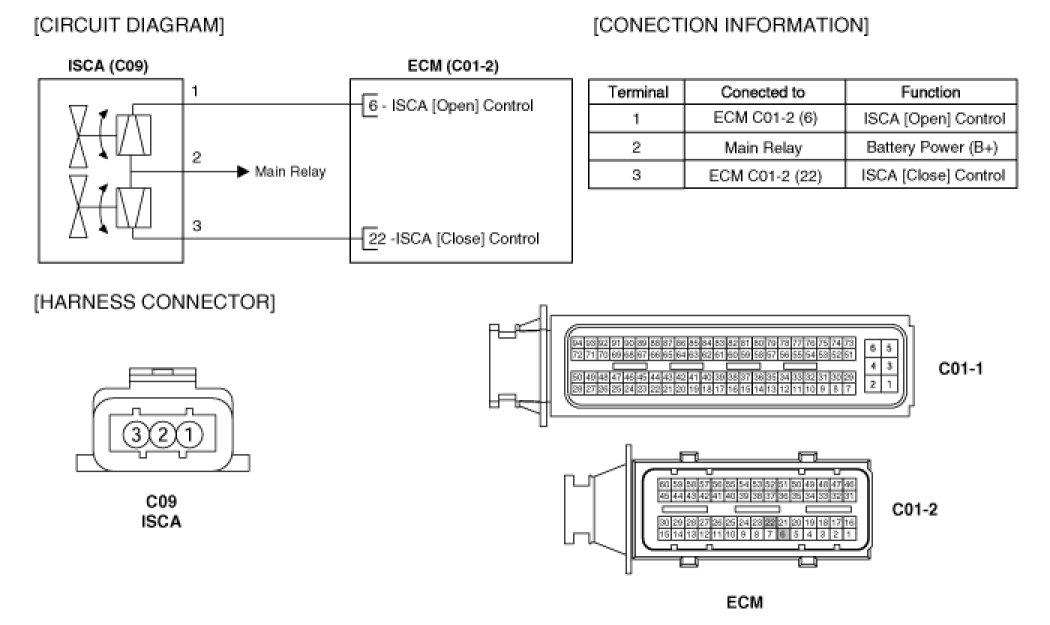

[A/T]

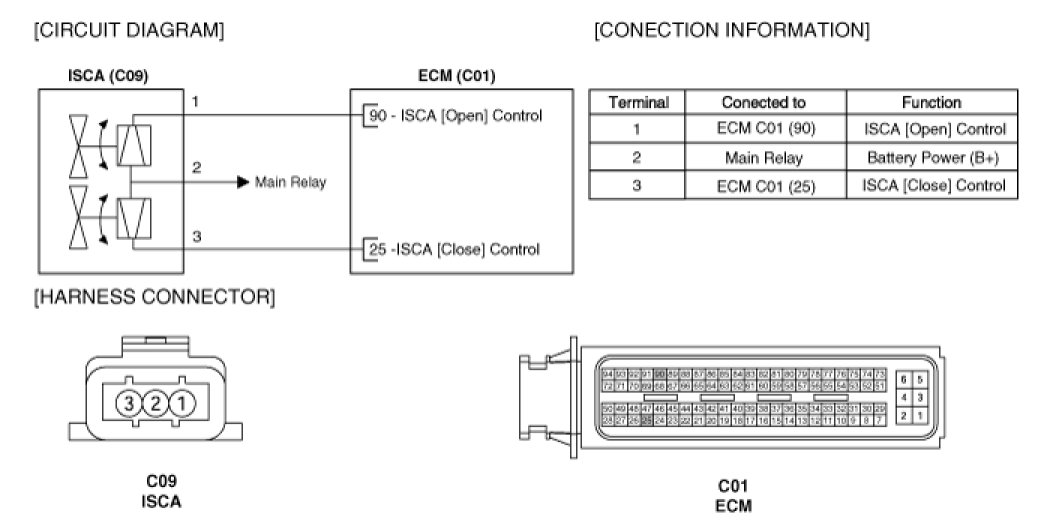

[M/T]
