Hyundai
>>
2009
>>
Accent L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Body Control Module
Body Control Module

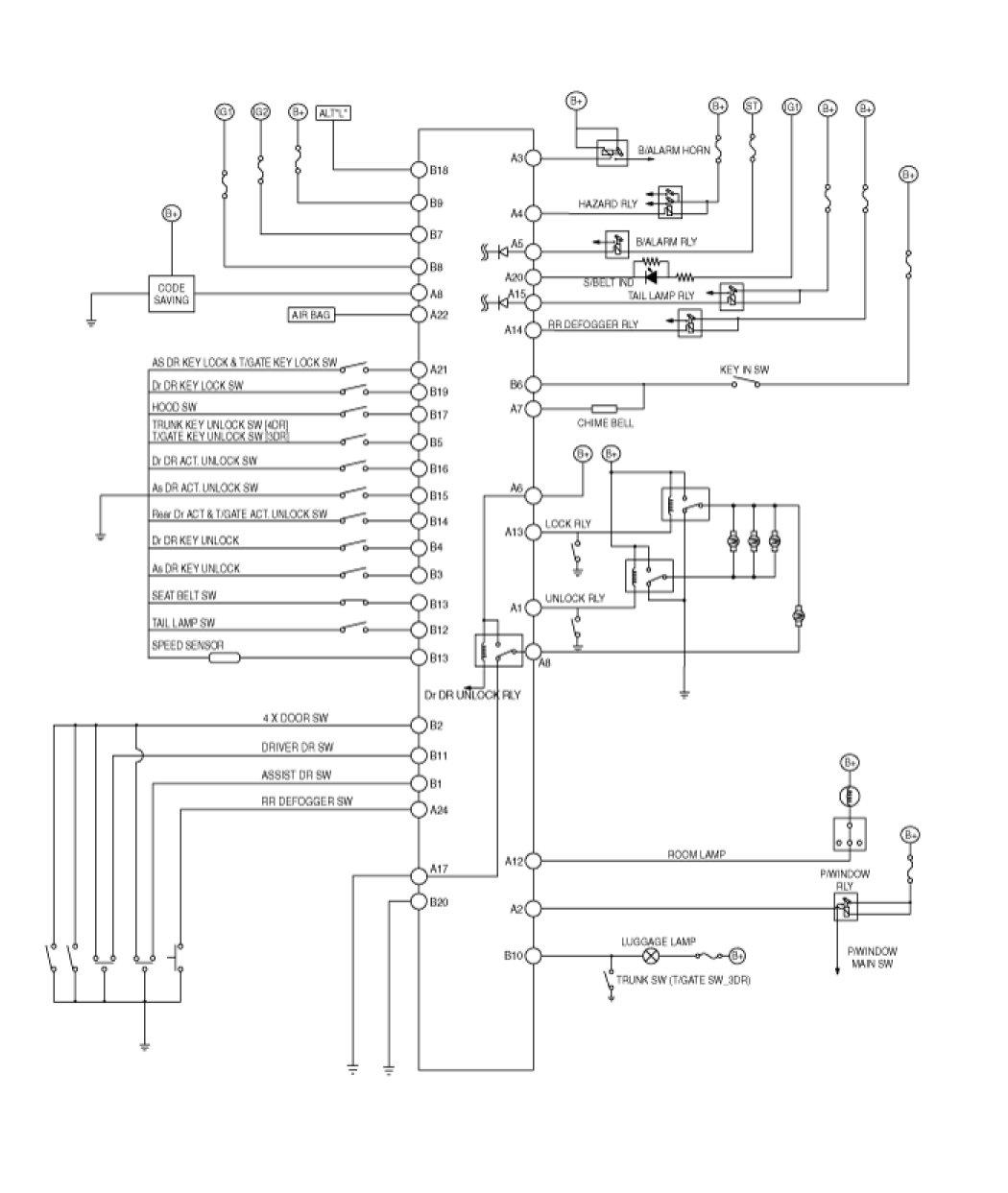

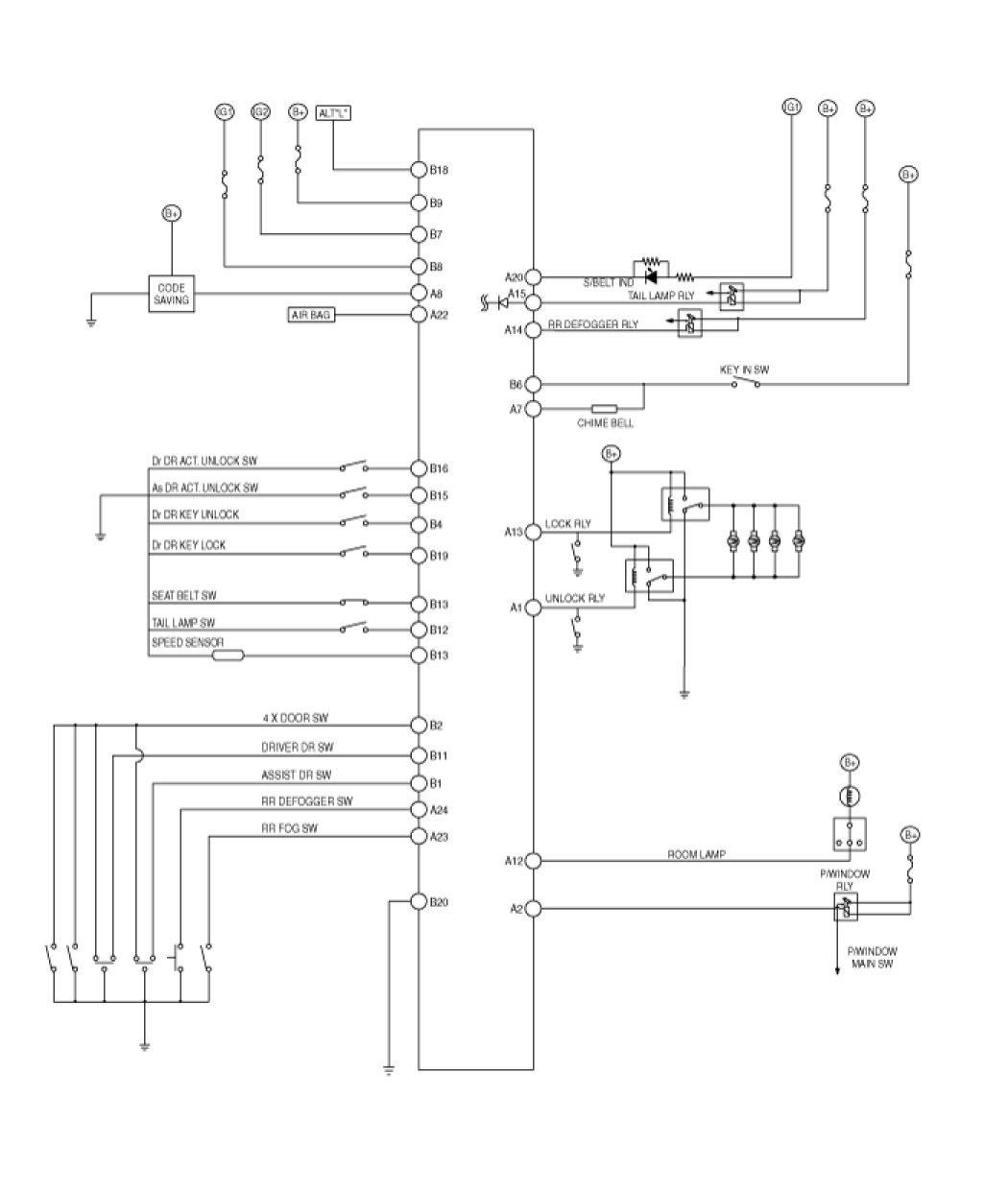

Circuit Diagram
BCM
& Receiver
BCM
