Fuel Fill Door Replacement

Replacement

Fuel Fill Door Replacement

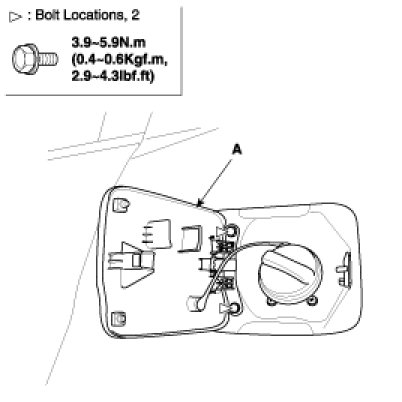

1. Loosen the bolts, then remove the fuel filler door (A).




2. Installation is the reverse of removal.

NOTE:
- Make sure the fuel fill door opens properly and locks securely.
