Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the center facia upper panel (A).




3. Remove the connectors of digital clock and hazard switch (B).

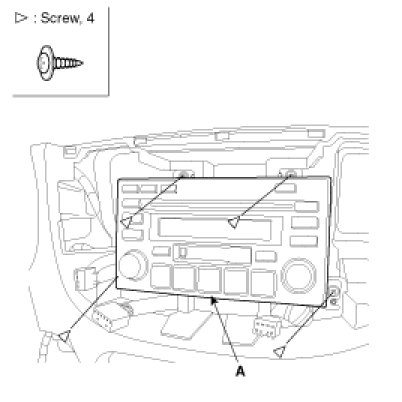

4. Remove the mounting screws then remove the audio unit (A).




5. Installation is the reverse of removal.
