Relay Box (Passenger Compartment)
Relay Box (Passenger Compartment)

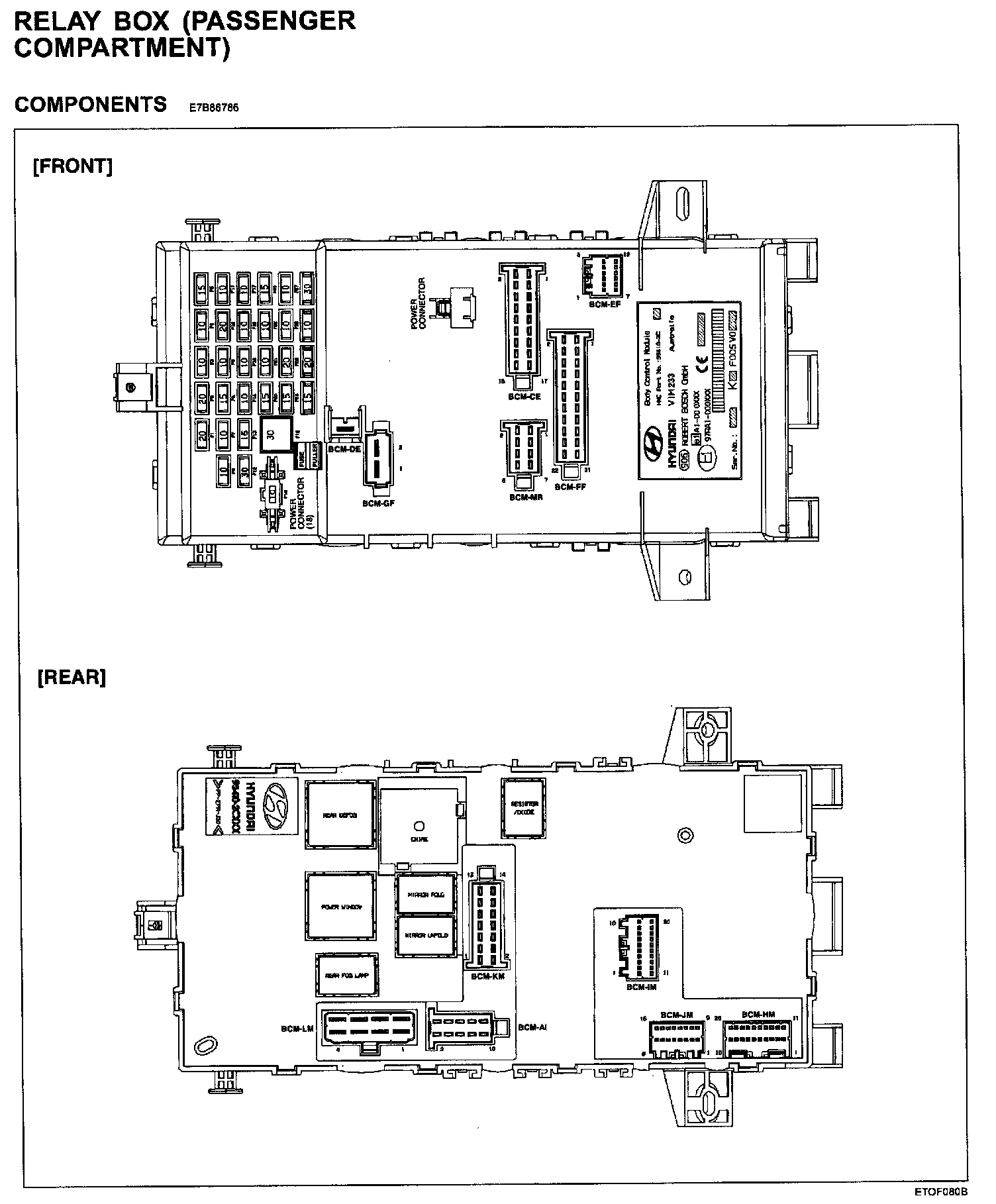

Relay Box (Passenger Compartment) - Components:

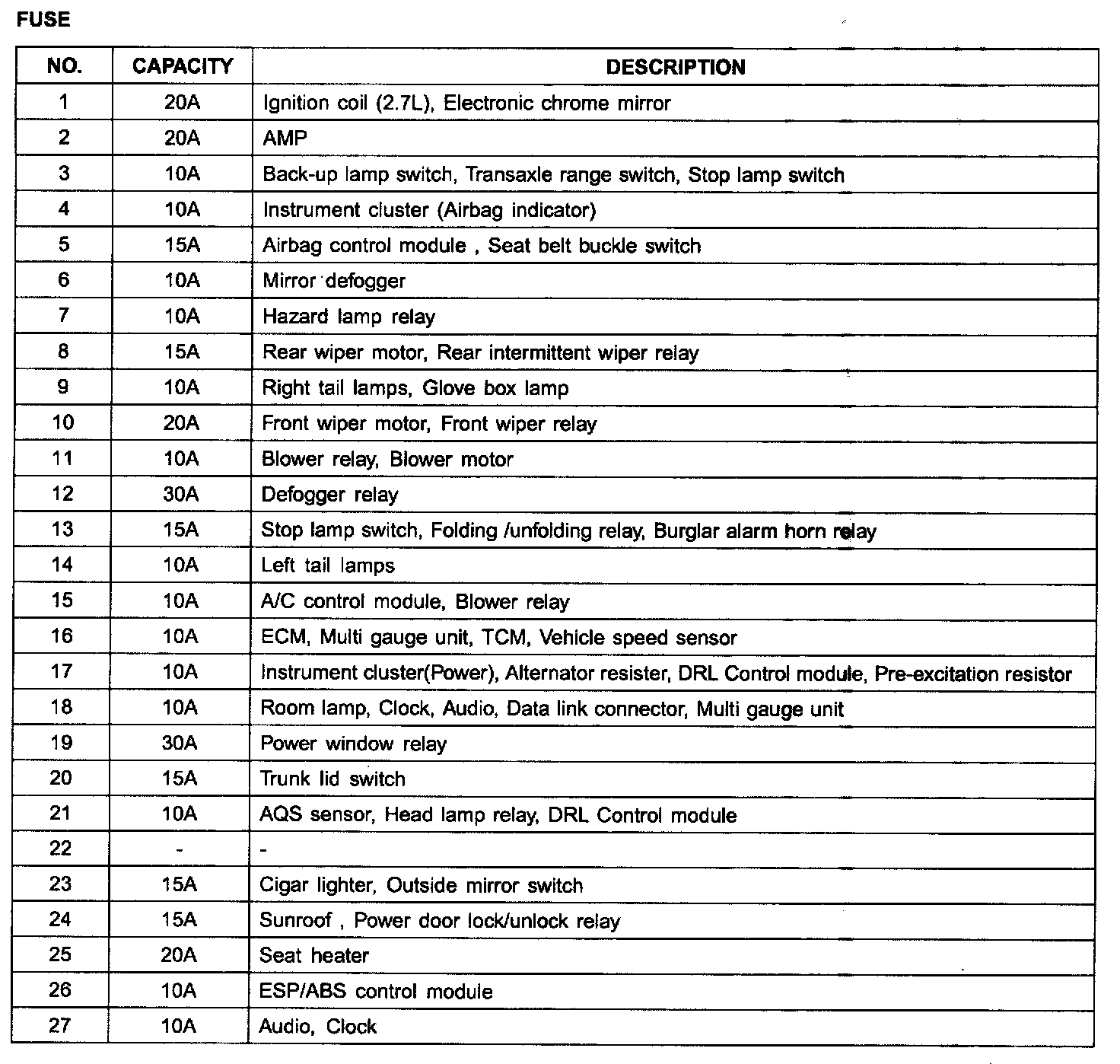

Fuse:
