Hyundai
>>
2008
>>
Sonata V6-3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Restraints and Safety Systems
Restraints and Safety Systems

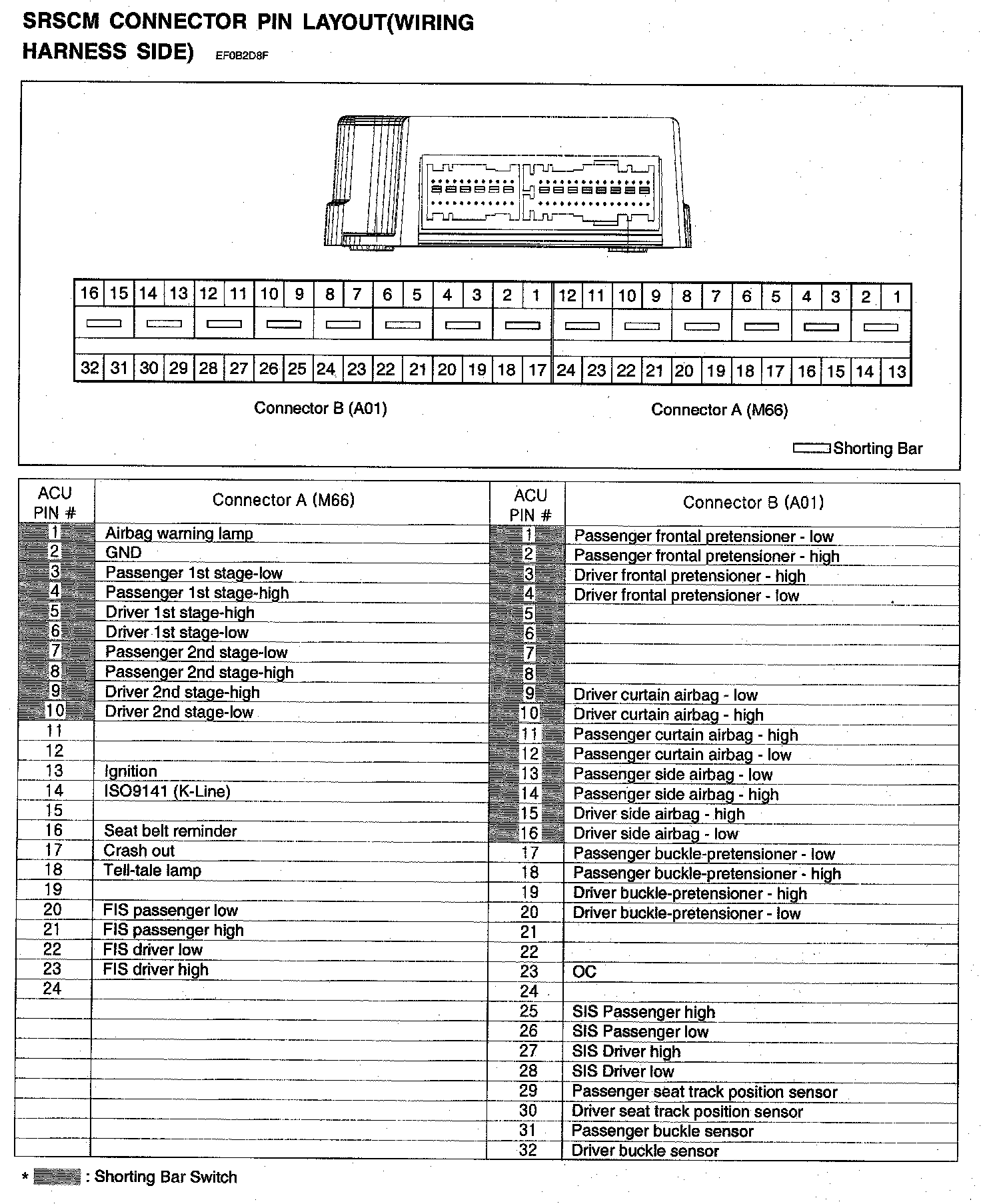

SRSCM Connector Pin Layout (Wiring Harness Side):
