Trailing Arm: Service and Repair

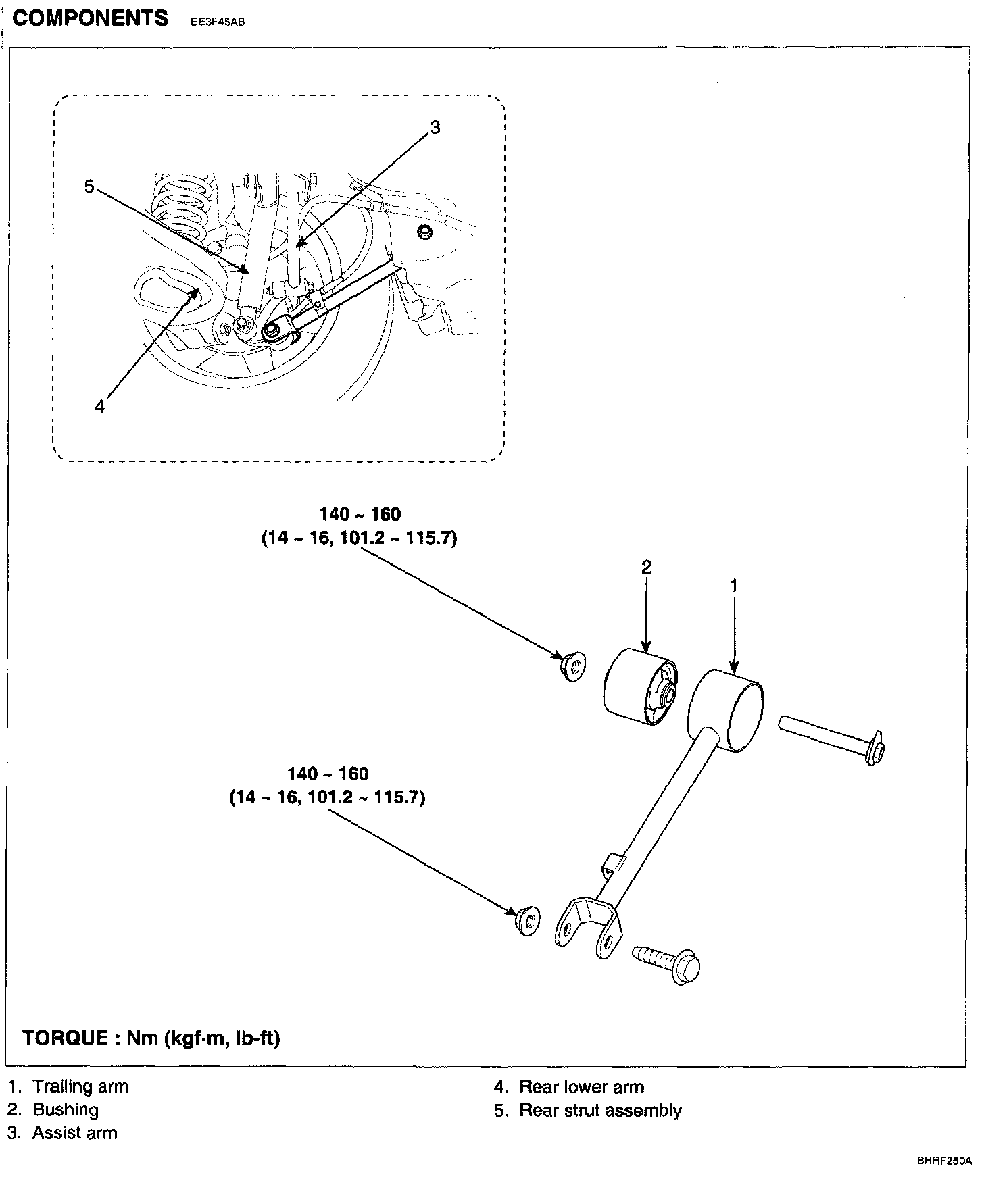

TRAILING ARMCOMPONENTS:

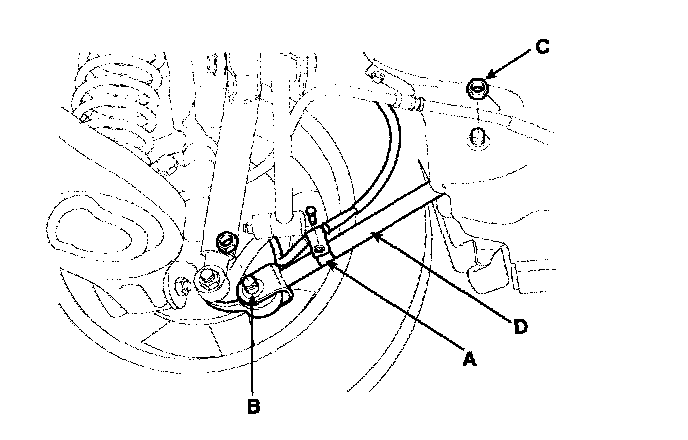

REMOVAL
1. Remove the wheel speed sensor bracket (A).
2. Remove the trailing arm mounting nut (B) from the rear axle assembly.
3. Remove the trailing arm mounting nut (C) from the body
4. Remove the trailing arm (D).
INSPECTION
1. Check the bushing for wear and deterioration.
2. Check the trailing arm for bending or breakage.
3. Check all the bolts for damage.
REPLACEMENT
TRAILING ARM BUSHING

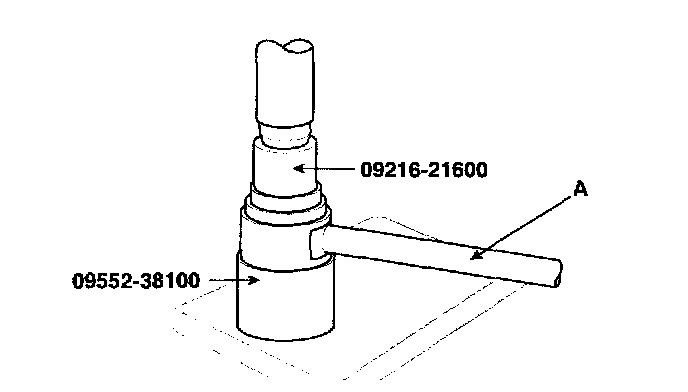

1. Using the special tools (09216-21600, 09552-38100), press-fit the bushing.
2. Remove the bushing from the trailing arm (A).
3. Using the special tool (09552-38000), replace the bushing.
Pull out force: over 100 kN (1000 kgf, 2204 lb)
NOTE: Be sure to press the bushing with the jut of the bushing aligned to the longitude of the trailing arm.

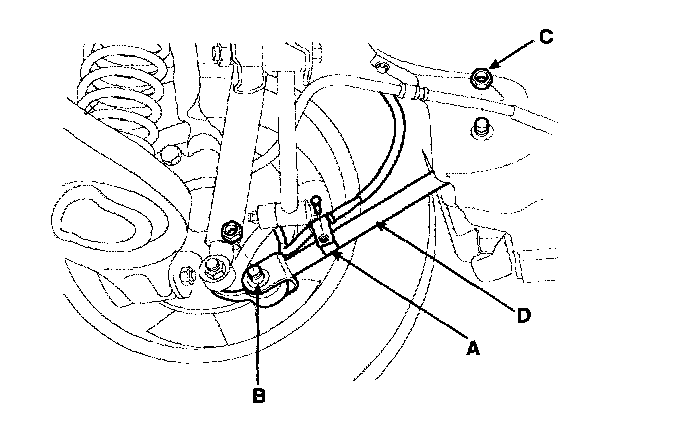

INSTALLATION
1. Place the trailing arm (D) as shown below.
2. Install the trailing arm nuts.
NOTE: Fully tighten the trailing arm mounting nuts with the vehicle on the ground in unloaded condition.
a. Install the trailing arm mounting nut (B).
Tightening torque Nm (kgf-m, lb-ft) 140-160 (14-16, 101.2-115.7)
b. Install the trailing arm bracket mounting nut (C).
Tightening torque Nm (kgf-m, lb-ft) 140-160 (14-16, 101.2-115.7)
3. Install the wheel speed sensor bracket (A).
