Air Bag Module (Curtain Air Bag)

AIR BAG MODULE (CURTAIN AIR BAG)

REMOVAL
1. Disconnect the battery negative cable and wait at least 3 minutes before beginning work.
2. Remove the following parts.
- Front and rear seat
- Interior trim
- Trunk trim
- Headlining

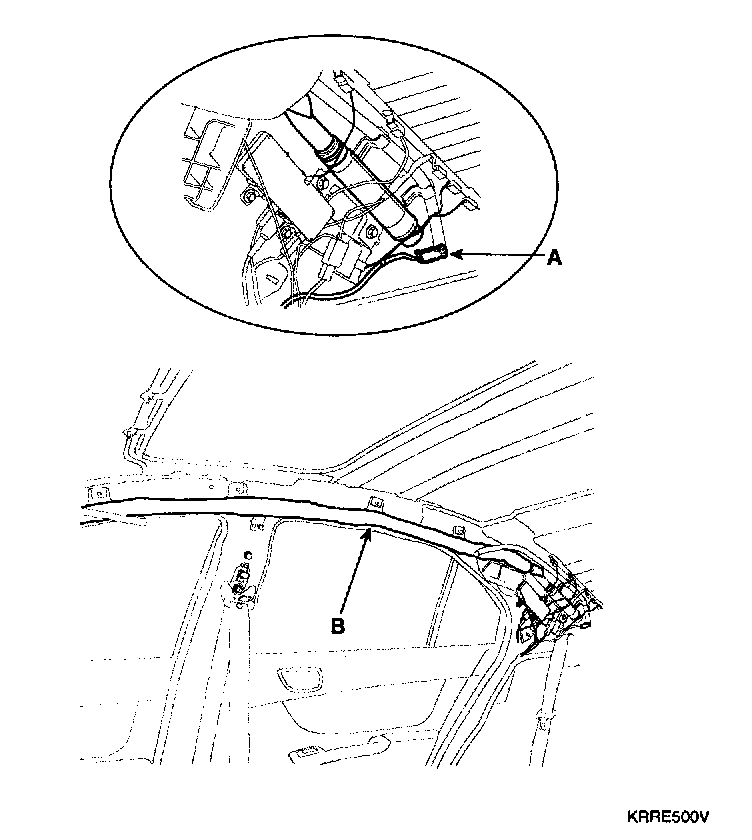

3. Disconnect the connector (A).




4. After loosening the mounting bolts, remove the curtain airbag (B).
5. Installation is the reverse of removal

NOTE: After installing the curtain airbag, confirm proper system operation: Turn the ignition switch ON; the SRS indicator light should turn on for about six seconds and then go off
