Home
>>
Hyundai
>>
2008
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Compartment Junction Block
Engine Compartment Junction Block

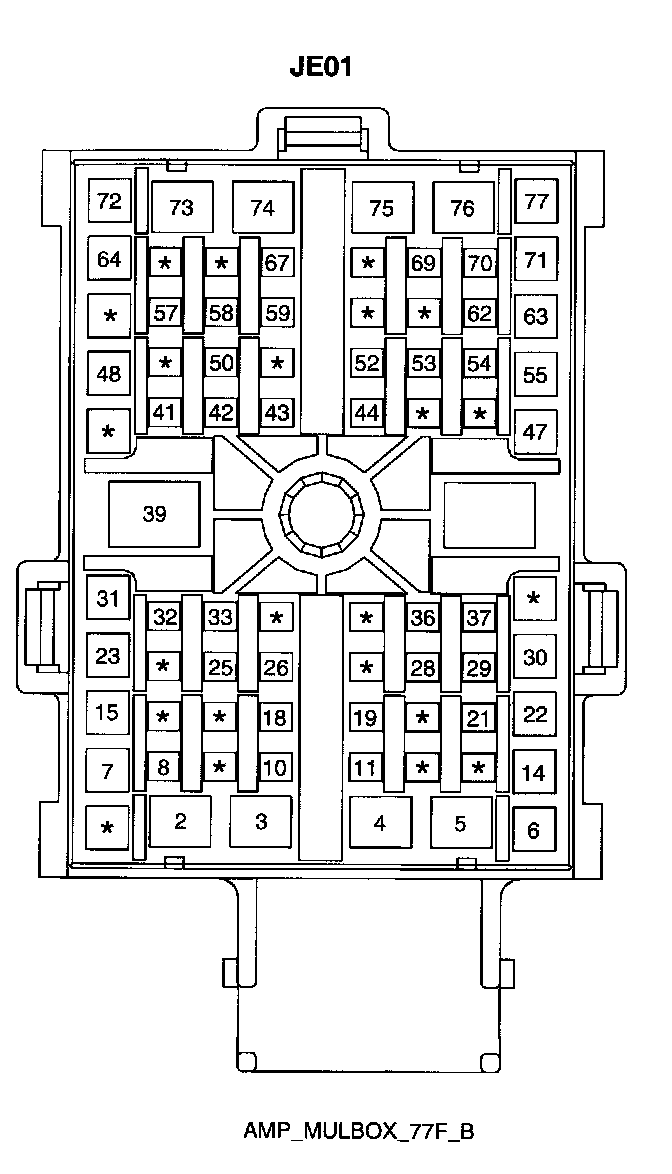

JE01:

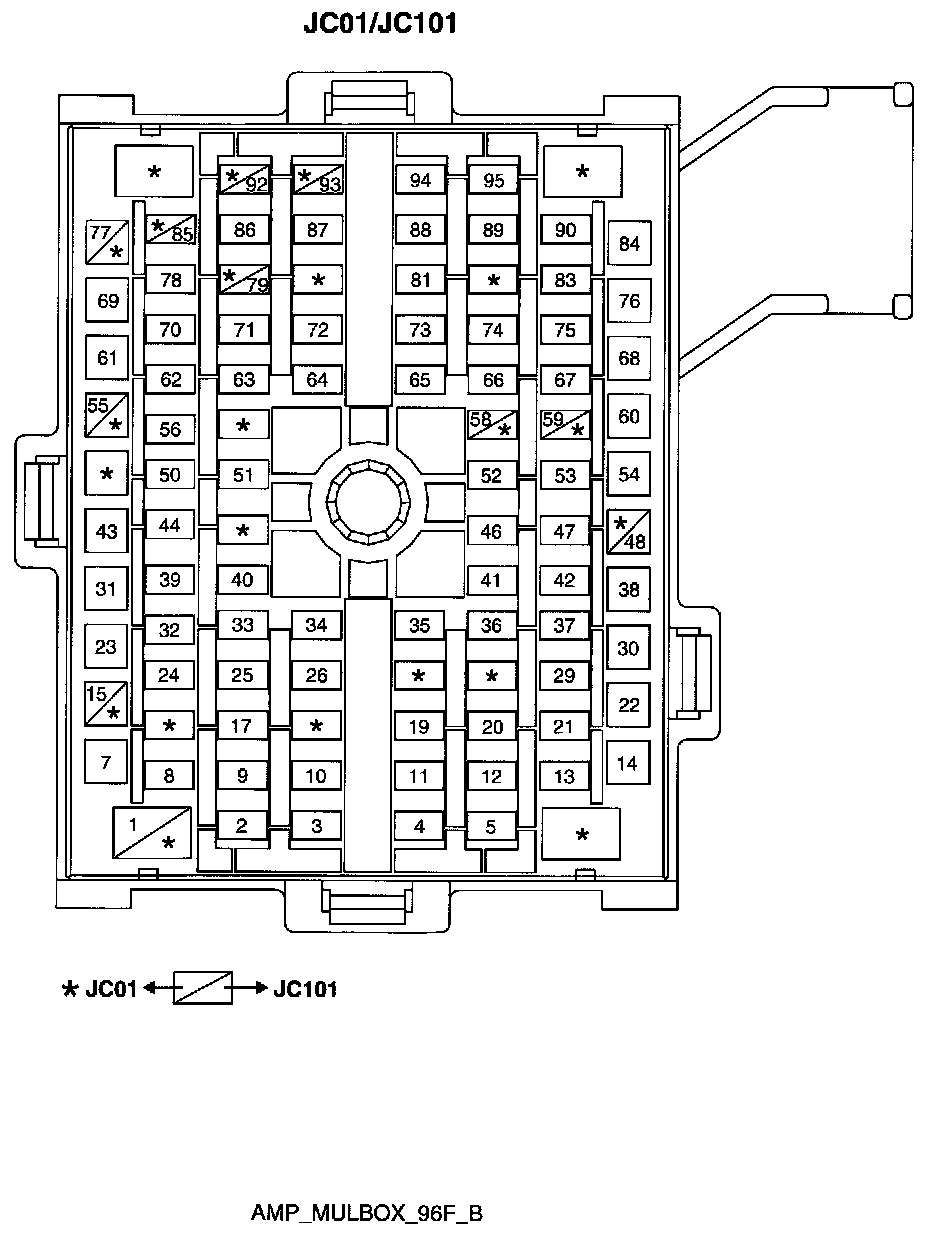

JC01/JC101:

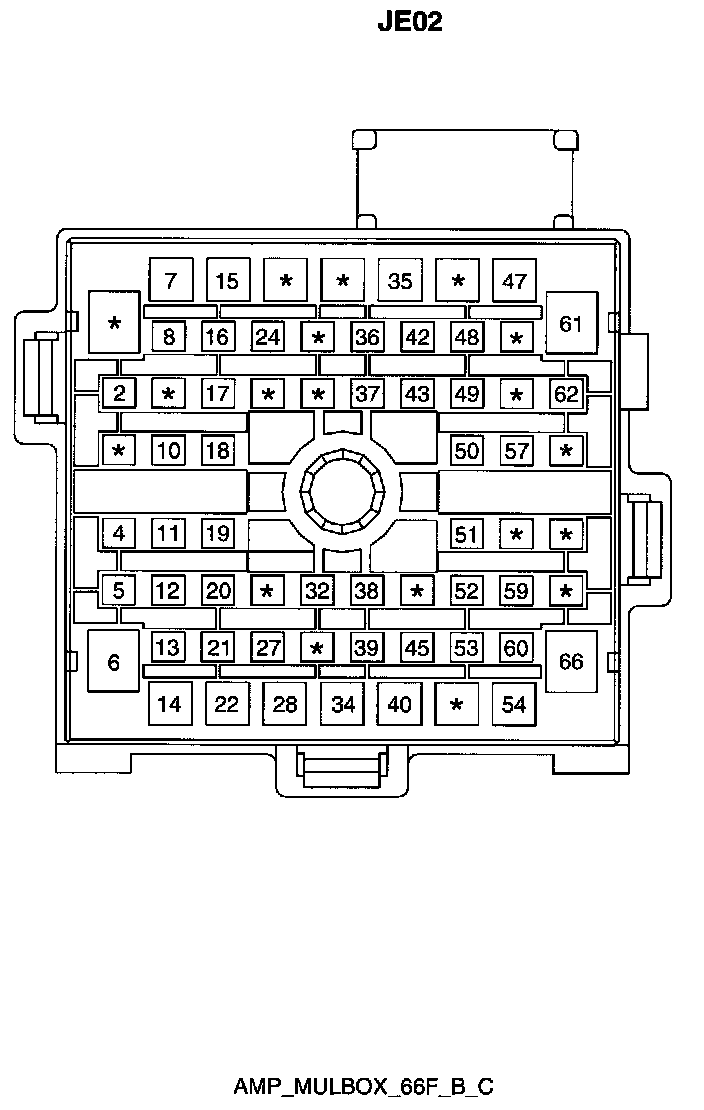

JE02:
