Installation

FRONT STRUT ASSEMBLY

INSTALLATION
1. Install the strut lower mounting bolts(A).





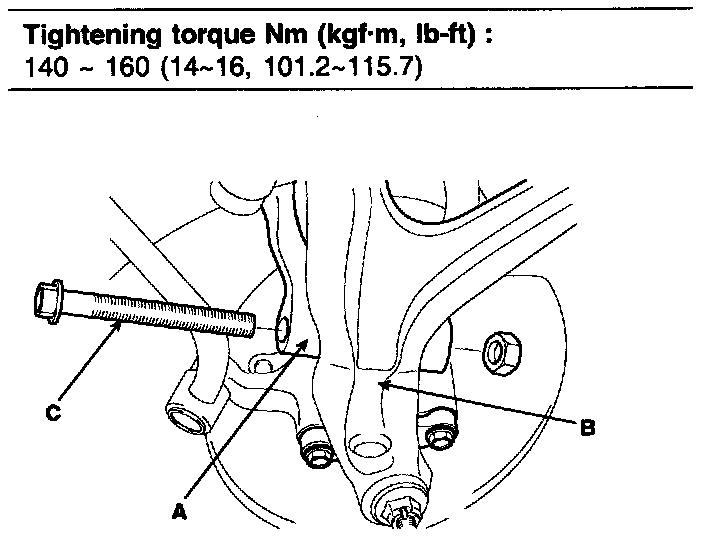

2. Install the fork (A) mounting bolt (C) to the strut assembly (B) with the I.D. mark facing outward.





3. Install the fork (B) to the front lower arm (A) fork mounting bolt (C).





CAUTION
Be careful not to damage to the aluminum lower arm.

4. Install the front stabilizer link nut (B) to the fork (A).

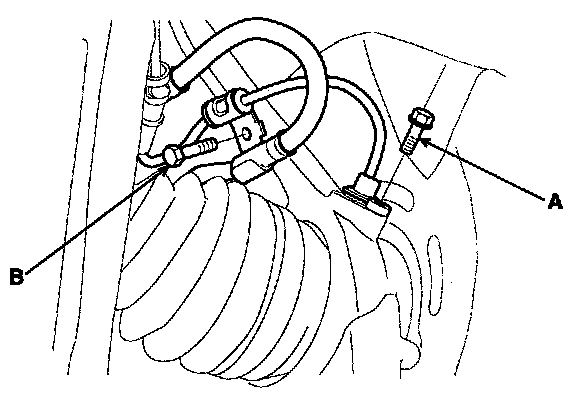

5. Install the speed sensor bolt(A).





6. Install the brake hose bracket to the fork and speed sensor cable mounting bolt(B) to the axle assembly.

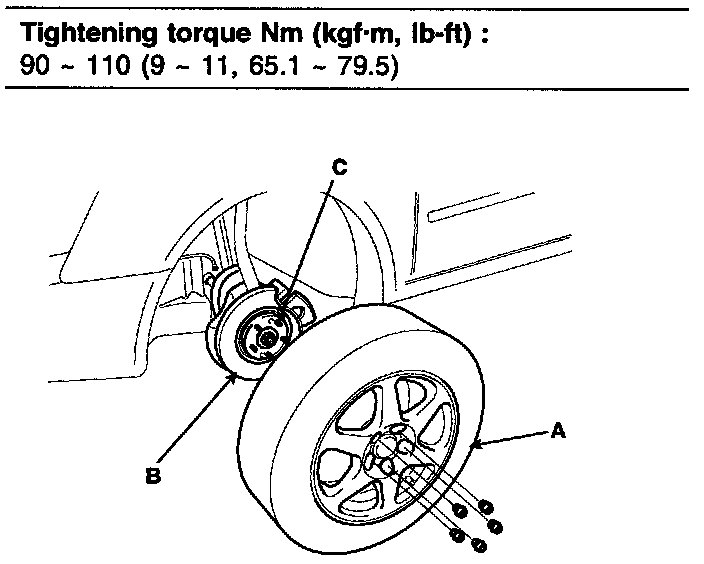

7. Install the wheel and the tire(A) to the front hub(B).





CAUTION
Be careful not to damage the hub bolts(C) when installing the front wheel and tire(A).
