Reassembly

FRONT STRUT ASSEMBLY

REASSEMBLY
1. Compress coil spring using special tool (09546-26000).
Install compressed coil spring onto shock absorber.

NOTE
a. There are two color marks on the coil spring. One corresponds to model option (see General Specifications), and the other corresponds to load classification. Ensure that the correct parts are being installed.
b. Install the coil spring with the identification mark directed toward the knuckle.

2. After fully extending the piston rod, install the spring upper seat and insulator assembly.

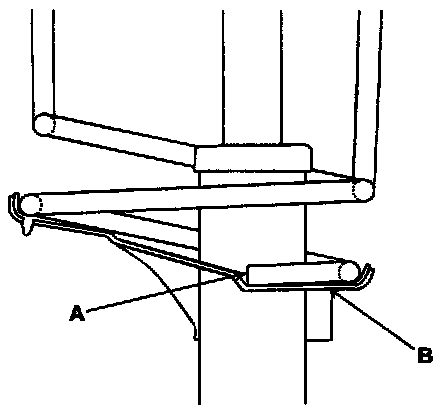

3. After seating the upper and lower ends of the coil spring(A) in the upper and lower spring seat grooves(B) correctly, tighten new self-locking nut temporarily.





4. Remove the special tool (09546-26000).
5. Tighten the self-locking nut to the specified torque.

Tightening torque Nm (kgf-m, lb-ft)
20-25 (2.0-2.5, 14.5-18.1)

CAUTION
Do not reuse the self-locking nut.
