Temperature Control Actuator
TEMPERATURE CONTROL ACTUATORINSPECTION
TEMPERATURE CONTROL ACTUATOR (PASSENGER'S)

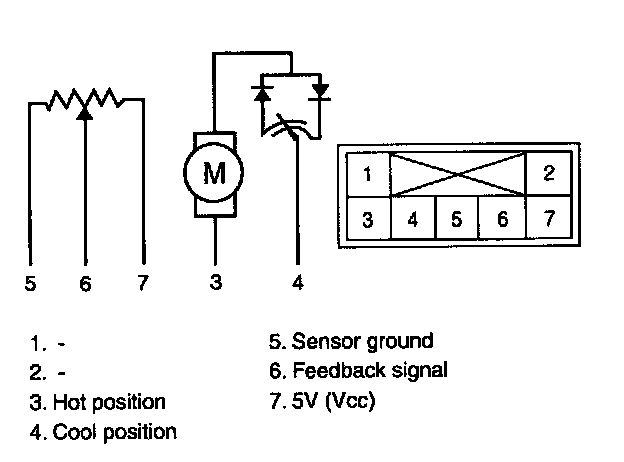

1. Verify the temperature control actuator operates to the hot position when connecting 12 V to the terminal 3 and grounding terminal 4.
Verify that the temperature control actuator operates to the cool position when connecting in the reverse.
2. Check the voltage between terminals 5 and 6.

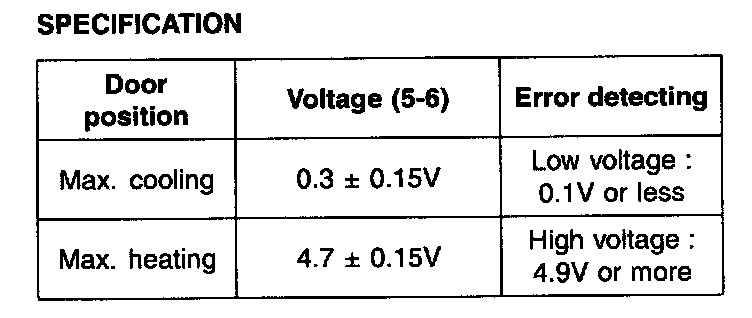

Specification:
It will feedback current position of actuator to controls.
TEMPERATURE CONTROL ACTUATOR (DRIVER'S)

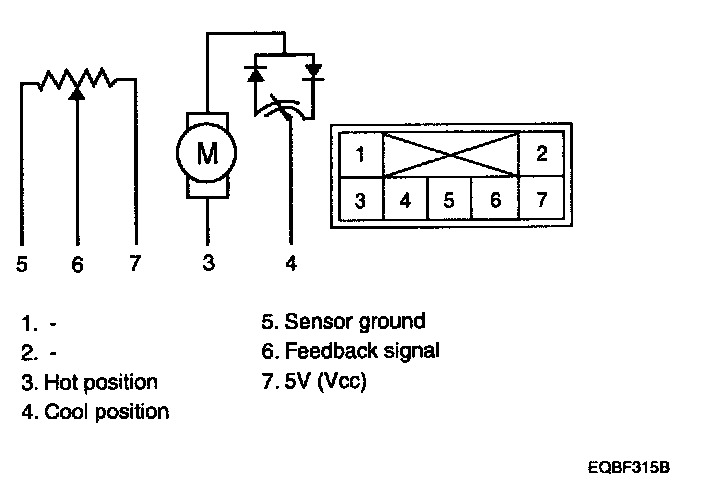

1. Verify the temperature control actuator operates to the hot position when connecting 12 V to the terminal 3 and grounding terminal 4.
Verify that the temperature control actuator operates to the cool position when connecting in the reverse.
2. Check the voltage between terminals 5 and 6.

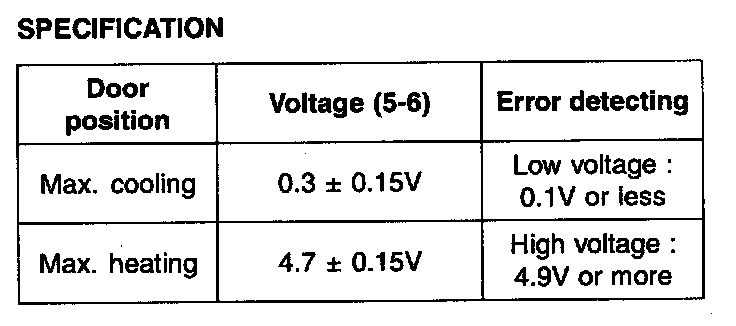

Specification:
