Mode Control Actuator

MODE CONTROL ACTUATOR

INSPECTION

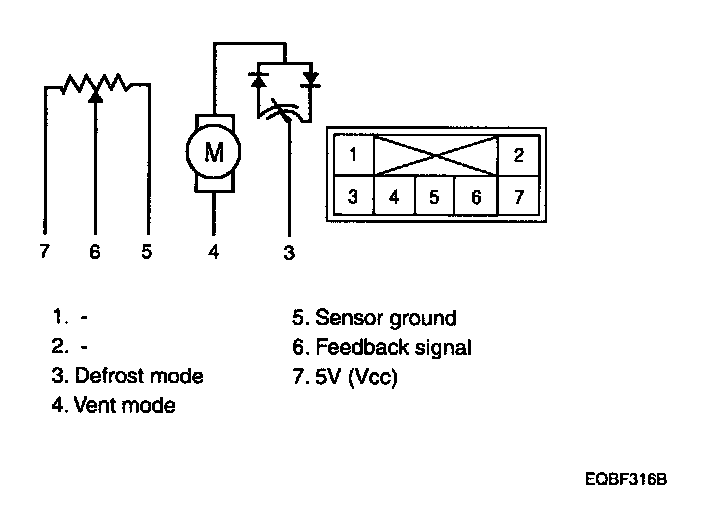

1. Verify that the mode control actuator operates to the defrost position when connecting 12 V to the terminal 3 and grounding terminal. Verify that the mode control actuator operates to the vent position when connecting in the reverse.

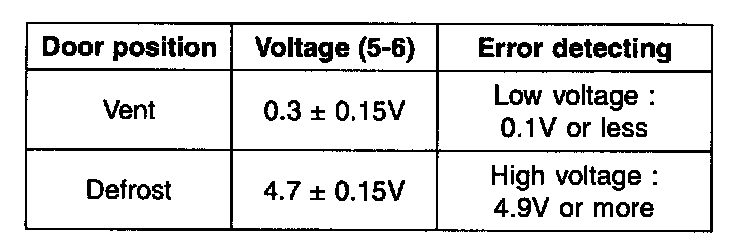

2. Check the voltage between terminals 5 and 6.






- It will feedback current position of actuator to controls.
