Temperature Control Actuator

TEMPERATURE CONTROL ACTUATOR (PASSENGER'S)

REPLACEMENT
1. Remove the glove box.

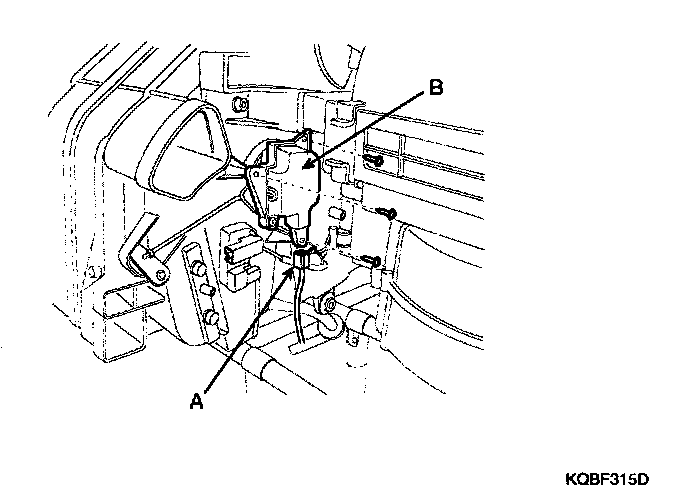

2. Disconnect the temperature control actuator connector (A) after removing the air duct.
3. Loosen the mounting screw and then remove the temperature control actuator (B).






4. Installation is the reverse order of removal.

TEMPERATURE CONTROL ACTUATOR (DRIVER'S)
1. Disconnect the negative (-) battery terminal.

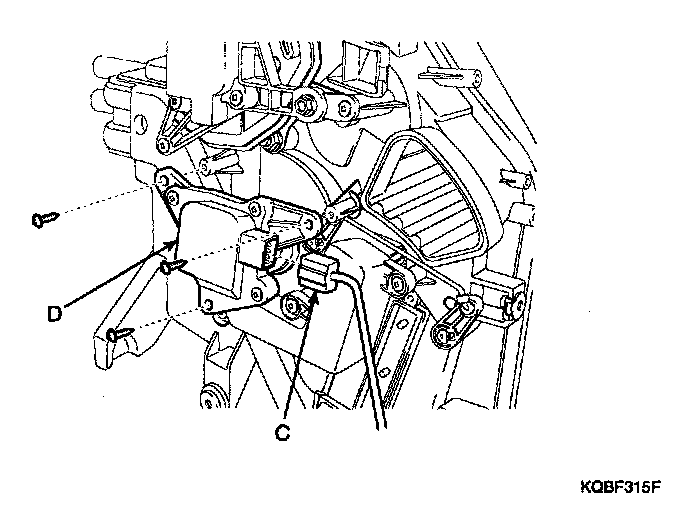

2. Disconnect the connector (C) of temperature control actuator.
3. Loosen the mounting screw and then remove the temperature control actuator (D).






4. Installation is the reverse order of removal.
